Imagine you're an IT administrator for a company that just hired 50 new employees. Each one needs a new laptop with Windows installed. You could spend days going from machine to machine, inserting a USB drive, and clicking through the setup wizard for each one. It would be tedious, repetitive, and prone to error. There's a much better way.

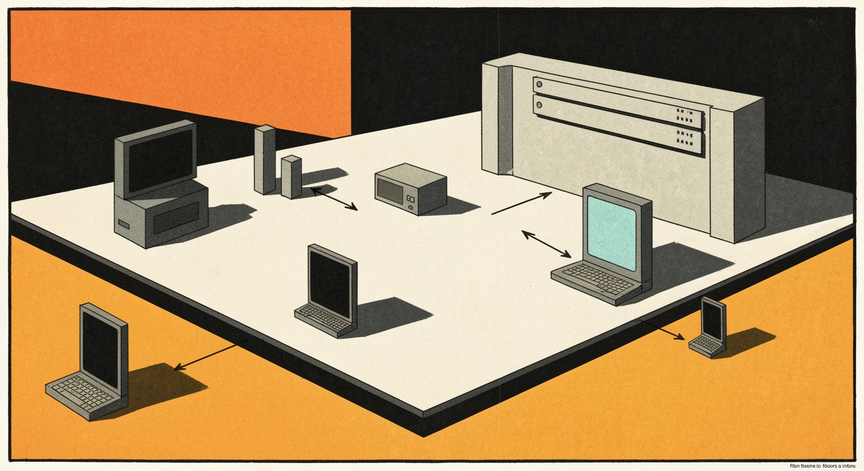

This is where Windows Deployment Services, or WDS, comes in. It's a server role included with Windows Server that lets you install Windows operating systems over the network. Instead of manually setting up each computer, you can deploy a standard Windows image to multiple machines at once, right from your server room.

WDS relies on a few core features to streamline deployments. First, it uses network booting. A new computer, with no operating system, can boot up, connect to the network, and find the WDS server automatically. This process is called Preboot Execution Environment, or PXE (pronounced "pixie"). The client computer essentially asks the network, "Is anyone out there able to give me an operating system?" and the WDS server responds.

Once connected, the WDS server sends a boot image to the client. This is a lightweight version of Windows that contains the setup environment. From there, the user (or an automated script) can choose a full operating system image to install. These images are stored in the Windows Imaging Format (.wim). You can have multiple images for different departments or hardware configurations, all stored on one central server.

One of the most powerful features is multicast deployment. If you need to install Windows on all 50 of those new laptops simultaneously, WDS can send the image data over the network just once, and all the clients receive it at the same time. This saves a huge amount of network bandwidth compared to sending 50 separate copies of the installation files.

Before you can start deploying operating systems with WDS, your network environment needs to be set up correctly. WDS doesn't work in isolation; it depends on several other core network services to function. Getting these prerequisites in place is the first step.

Having these components properly configured ensures that when a new computer requests an OS, the entire process flows smoothly without any manual intervention. Think of it as setting up the roadway before the cars can drive on it.

Ready to check your understanding of WDS?

With a solid grasp of what WDS is and what it requires, you can begin to see how it fits into a larger IT infrastructure strategy for managing computers efficiently.
