Understanding ADC DRDY Timeouts
DRDY Signal Fundamentals
The Data Ready Signal
In the world of digital electronics, timing is critical. When an Analog-to-Digital Converter (ADC) finishes its job of converting an analog voltage into a digital number, how does the rest of the system know the data is ready to be picked up? The answer is often a simple, elegant signal called DRDY, which stands for "Data Ready".
Think of an ADC as a chef who takes some time to prepare a dish. The DRDY signal is like a bell the chef rings the exact moment the dish is ready for pickup. Without the bell, you'd have to keep peeking into the kitchen, which is inefficient. With the bell, you know precisely when to act.

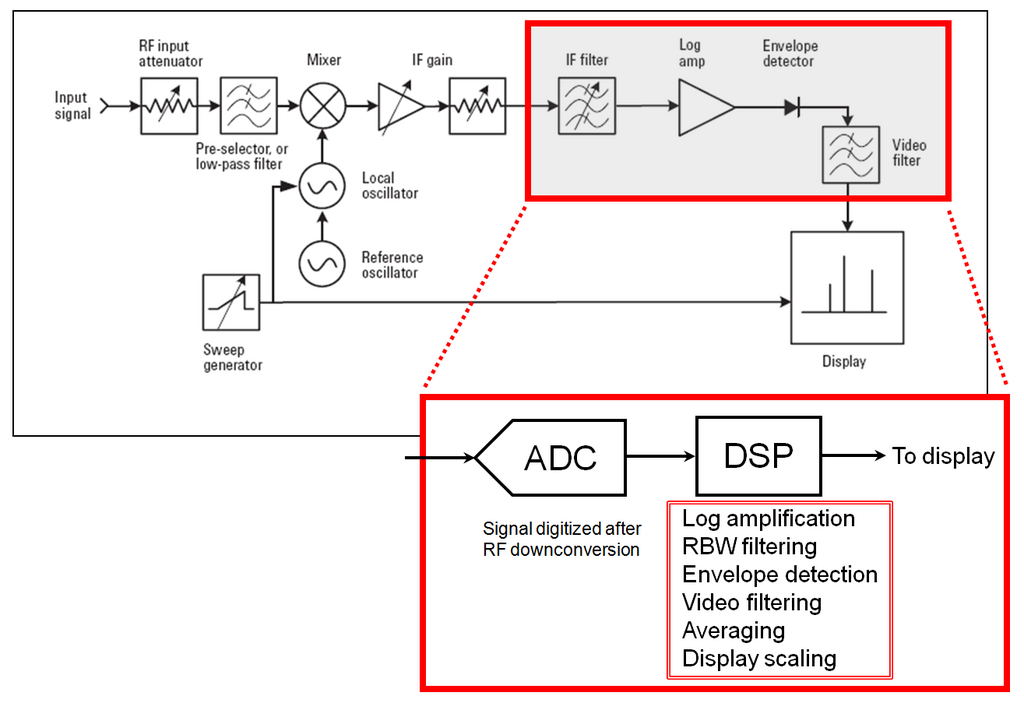

This signal acts as a synchronization flag between the ADC and a microcontroller or digital signal processor (DSP). When the ADC has a fresh piece of data available in its output register, it asserts the DRDY signal. This tells the microcontroller, "I'm done. You can come and read the result now."
Timing is Everything
The behavior of the DRDY signal is defined by its timing. Typically, the signal rests in one state (either high or low) while the ADC is busy converting. Once the conversion is complete, the signal transitions to its active state. This transition is the key event.
For example, a DRDY pin might be held high during conversion. When the conversion is finished, it will drop to a low state. This falling edge is the trigger for the microcontroller to read the data. After the data is read, the DRDY signal usually returns to its inactive state, ready for the next cycle.
This timing relationship ensures that the microcontroller doesn't try to read data while the ADC is still working on it, which would result in fetching either old or incomplete information. It guarantees data integrity.
Interfacing with a Microcontroller
A microcontroller can monitor the DRDY signal in two main ways: polling or using interrupts.
Polling involves the microcontroller repeatedly checking the status of the DRDY pin in a loop. This is simple to implement but very inefficient. The microcontroller wastes most of its processing cycles just waiting and checking, unable to perform other tasks.
Interrupts are far more efficient. The DRDY pin of the ADC is connected to an interrupt-capable pin on the microcontroller. The microcontroller can then work on other tasks. When the DRDY signal changes state (e.g., goes from high to low), it triggers an interrupt. This hardware event forces the microcontroller to pause its current task, jump to a special function called an Interrupt Service Routine (ISR), read the ADC data, and then resume its previous task. This interrupt-driven approach is the standard for high-performance systems because it frees up the processor and ensures the fastest possible response to new data.
By using the DRDY signal to trigger an interrupt, a system can achieve precise, synchronized data acquisition without wasting valuable CPU time. This is essential in applications from digital audio processing to scientific instrumentation, where every data point counts.
What is the primary function of the DRDY (Data Ready) signal in a system with an Analog-to-Digital Converter (ADC)?
A change in the DRDY signal's state, such as a transition from high to low, typically signifies what event?
