Touchscreen Engineering and Mechanics
Capacitive Sensing Physics
You Are Part of the Circuit
Every time you touch your smartphone screen, you complete an electrical circuit. It’s not a circuit in the traditional sense, with wires and batteries, but one based on a principle called capacitance. Your phone's screen is coated with a transparent, conductive material, typically Indium Tin Oxide, that holds a uniform electrical charge.
This charged layer generates an electrostatic field. Think of it as a calm, invisible lake of electrons spread evenly across the glass. The system is in a steady state, waiting for something to disturb it. That something is your finger.

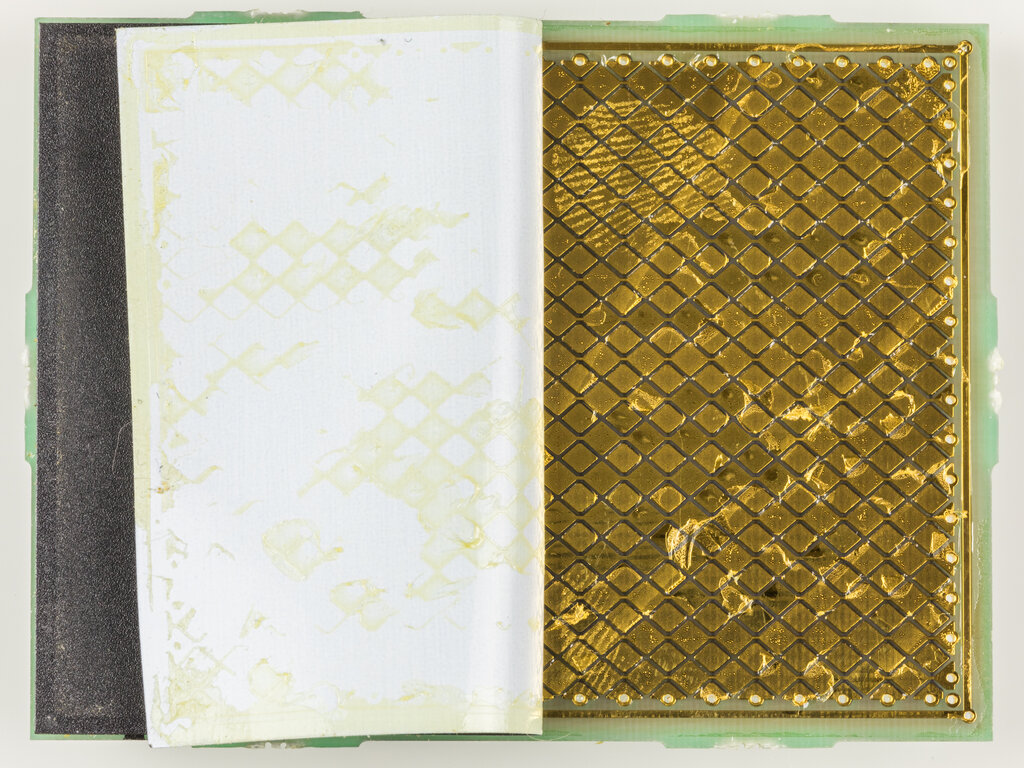

The human body is naturally conductive because it contains a lot of water and dissolved salts, or ions. When your finger gets close to the screen, it distorts the electrostatic field. Your finger and the screen's conductive grid act like the two plates of a capacitor, separated by the thin glass insulator of the screen. This interaction is known as surface capacitance.
Creating a Current
This newly formed capacitor—your finger and the screen—draws a tiny amount of current from the screen's electrostatic field at the point of contact. This isn't a continuous flow of electrons like in a wire. Instead, it's a displacement current—a transient effect caused by the change in the electric field's intensity.
Sensors at the corners or edges of the screen measure the change in capacitance at that specific location. The device's controller calculates the precise coordinates of the touch based on which sensors detect the largest change. Because this system relies on conductivity, it won't work with most standard plastic styluses or when you're wearing heavy gloves. The material needs to be able to interact with the electric field.
The key is field distortion. The screen doesn't sense pressure; it senses the specific way your conductive body changes the electric field it maintains.
This entire process happens almost instantly, allowing for the smooth, responsive feel we expect from modern devices. It’s a clever application of fundamental physics, turning your finger into an essential component of the system.
