Your business or home network is a busy place. Computers, phones, and smart devices all compete for bandwidth. Adding a dozen IP cameras to this mix without proper planning can slow everything down. The constant video streams create significant traffic, and each camera contributes to the network's chatter, known as broadcast traffic. To keep your primary network fast and secure, it's best to create a dedicated, isolated subnet just for your security cameras.

Think of it as building a separate, exclusive road for your camera data, preventing traffic jams on your main digital highway. This not only improves performance but also enhances security. By placing cameras on their own subnet, you make it much harder for a potential intruder who compromises a camera to gain access to your primary business or personal data. We'll use a method called Classless Inter-Domain Routing, or CIDR notation, to slice off a piece of our network for this purpose.

Most home and small business networks use a /24 block, like 192.168.1.0/24. This gives you 254 usable IP addresses, from 192.168.1.1 to 192.168.1.254. That's usually more than enough. We can carve out a smaller section from this block for our cameras. A /27 or /28 subnet is often a good choice.

A /27 subnet gives us 30 usable IP addresses. This is enough for a Network Video Recorder and up to 29 cameras, which is plenty for most small to medium-sized deployments. More importantly, it dramatically shrinks the broadcast domain for the cameras. This means that background network chatter from the cameras is contained within their small subnet and won't flood your main network.

Let's see how the math works. The number of hosts in a subnet is calculated based on the number of bits left for the host portion of the address. The formula is $2^h - 2$, where $h$ is the number of host bits. We subtract two because the first IP address is the network address and the last is the broadcast address; neither can be assigned to a device.

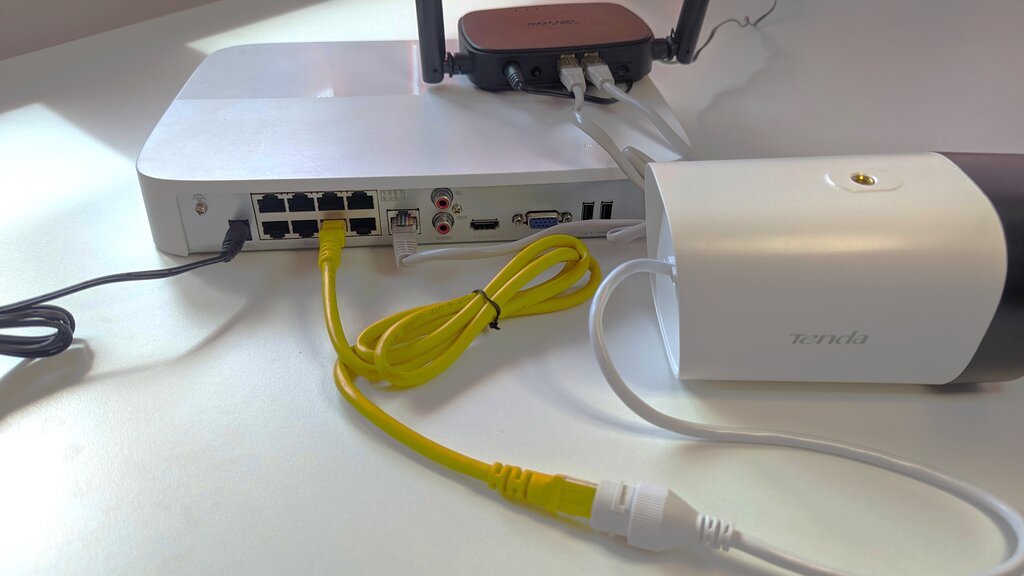

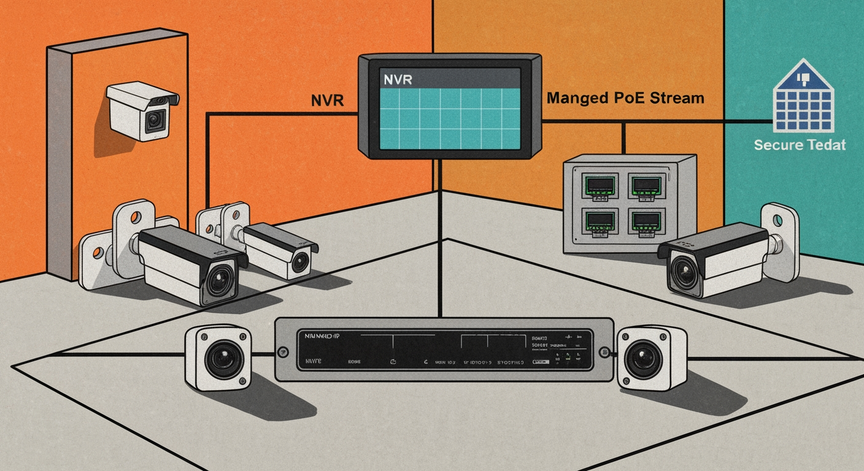

Now that we've defined our camera subnet, 192.168.1.32/27, we need to configure the network. This subnet is our 'island'. The only way to access this island from the main network is through a gateway. The Network Video Recorder is the central hub of our camera system, so it's the natural point of control.

We'll configure the router to manage this new subnet. The router's main LAN interface remains 192.168.1.1. We then create a secondary IP on the router to act as the gateway for our new camera network. The NVR and cameras will use this new gateway to communicate. Let's assign our addresses.

Notice that the subnet mask 255.255.255.224 is the decimal equivalent of /27. All devices on the camera island point to the new gateway (192.168.1.33), and only the NVR needs to know how to talk to devices outside this island. For added security, you can create firewall rules on your router to only allow the NVR to be accessed from specific devices on your main LAN.

By strategically designing your subnets, you create a more organized, efficient, and secure network. This isolation technique is a core principle of professional network architecture and is essential for scaling systems reliably.
