Strategic Information Synthesis for Building Students
Technical Document Taxonomy
The Language of Construction
A full set of construction documents can contain hundreds of pages, from architectural drawings to structural details and electrical plans. For someone new to the field, it looks like an overwhelming flood of information. The key isn't to read every word from start to finish, but to understand how the documents are organized and which ones hold authority.
Think of it like a legal system. A specific ruling on a case (a detail drawing) carries more weight for that specific situation than a broad constitutional principle (a general note).
This concept is called the hierarchy of documents. When a conflict arises—say, a general note on a floor plan says all doors should be wood, but a specific door schedule calls for a steel door in one location—the more specific document wins. The door schedule overrules the general note. This prevents small, critical details from being lost in broad statements.
Sorting the Pile

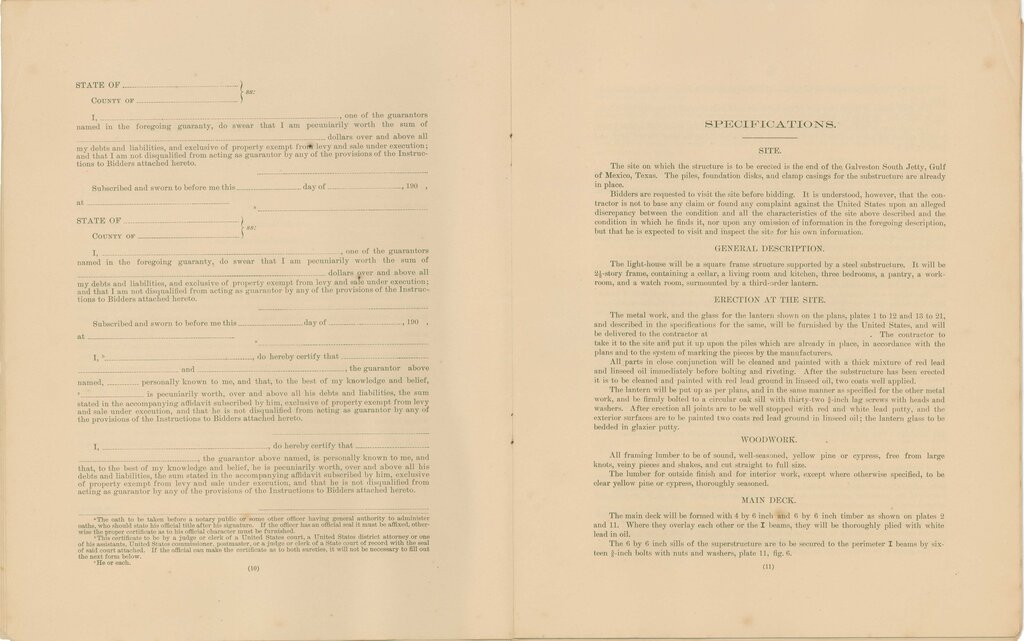

Construction documents generally fall into two categories: the drawings and the project manual. The drawings show the geometry—what the building looks like, its dimensions, and how the parts fit together. The project manual contains the written text: specifications, contracts, and conditions. It's here that we find the detailed requirements for materials and workmanship.
Within the project manual, the technical specifications are the most critical part for builders. To bring order to this information, the industry widely uses , a standard for organizing specifications into 50 divisions based on work results or construction practices. This system creates a universal table of contents for any project.
For example, everything related to concrete will be in Division 03, while doors and windows are in Division 08. This systematic approach means you don't have to hunt for information; you know exactly where to find it.
| Division | Title |
|---|---|
| 01 | General Requirements |
| 03 | Concrete |
| 06 | Wood, Plastics, Composites |
| 08 | Openings (Doors/Windows) |
| 09 | Finishes (Paint/Flooring) |
| 26 | Electrical |
Rules vs. Goals
Specifications themselves have their own internal logic. They are written in one of two ways: prescriptive or performance-based.
A prescriptive specification tells the contractor exactly what materials to use and how to install them. It's like a detailed recipe. A performance specification describes the desired outcome, leaving the method up to the contractor. It's like asking for a cake that is moist and chocolatey, but not specifying the recipe.
Here's a simple comparison:
| Type | Example | Control Level |
|---|---|---|
| Prescriptive | "Install 5/8-inch thick, Type X gypsum wallboard with 1 1/4-inch Type S screws spaced 12 inches on center." | High |
| Performance | "The wall assembly must achieve a one-hour fire-resistance rating when tested per ASTM E119." | Low |
Prescriptive specs are common on projects where the designer wants total control over the final product. Performance specs are used when the designer wants to encourage innovation or allow the contractor to use their expertise to find the most cost-effective solution. Finally, all of this is governed by building codes, which are regulatory documents that establish the legal minimum for safety and performance. No specification or drawing can violate the building code.
A general note on a drawing says all windows should be double-paned. A separate, more detailed window schedule specifies a triple-paned window for a single north-facing room. Which instruction should be followed?
Which part of the construction documents primarily shows the building's geometry, dimensions, and how components fit together?
By understanding this taxonomy, you can triage any set of documents. You can distinguish between the binding rules of the code, the specific instructions in the specs, and the visual guide of the drawings, knowing which to follow when they conflict.
