In the heart of a steam turbine, a massive steel shaft spins at incredible speeds. To keep this rotation smooth and prevent the machine from tearing itself apart, engineers rely on a remarkably simple-sounding component: the journal bearing. A journal bearing is essentially a sleeve that wraps around a section of a rotating shaft, supporting its weight and allowing it to turn with minimal friction.

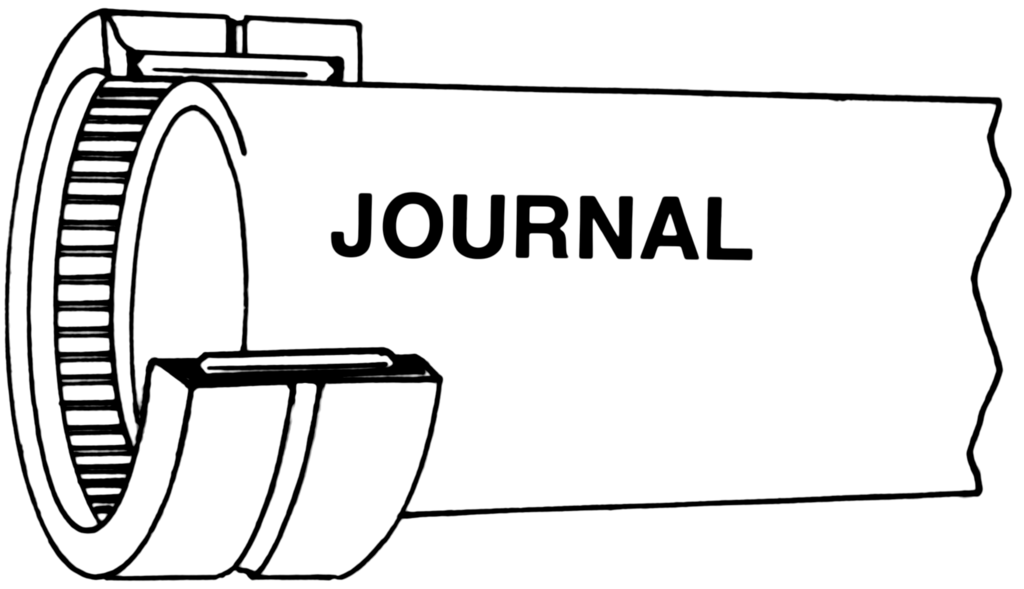

The two main parts are the journal, which is the polished surface of the shaft itself, and the bearing shell, the stationary sleeve that encloses it. The goal is to keep these two metal surfaces from ever touching while the shaft is in motion.

How do you stop two metal parts from touching? You put a slippery layer between them. Journal bearings use a principle called hydrodynamic lubrication. When the turbine shaft starts to spin, it drags lubricating oil along with it. As the speed increases, the oil is pulled into the tiny, wedge-shaped gap between the journal and the bearing shell.

This action creates immense pressure within the oil, forming a thin but powerful film that lifts the heavy shaft and allows it to float. The shaft is no longer in contact with the bearing shell; it's riding on a cushion of oil. This eliminates almost all friction and wear that would otherwise occur.

Even with a perfect oil film, contaminants like dust or tiny metal shavings can get into the system. If these hard particles were scraped between a steel shaft and a steel bearing, they would cause catastrophic damage.

To prevent this, the bearing shell is lined with a soft material. Most commonly, this is a Babbitt alloy, a soft, slippery metal made mostly of tin or lead. This material serves two purposes. First, it's a sacrificial layer; it wears out before the much more expensive and difficult-to-replace turbine shaft does. Second, if a hard particle enters the bearing, the soft Babbitt lining can actually absorb it, embedding the particle safely out of the way where it can't scratch the journal.

Let's test your understanding of how these critical components work.

The clever use of fluid pressure and sacrificial materials allows journal bearings to support immense loads with remarkable efficiency and durability.
