When a three-phase induction motor roars to life, it draws a massive amount of current from the power grid. This sudden demand, known as inrush current, can be six to eight times the motor's normal operating current. This jolt can cause voltage to dip across the local network, dimming lights and potentially disrupting other sensitive equipment. It also puts significant mechanical and electrical stress on the motor itself.

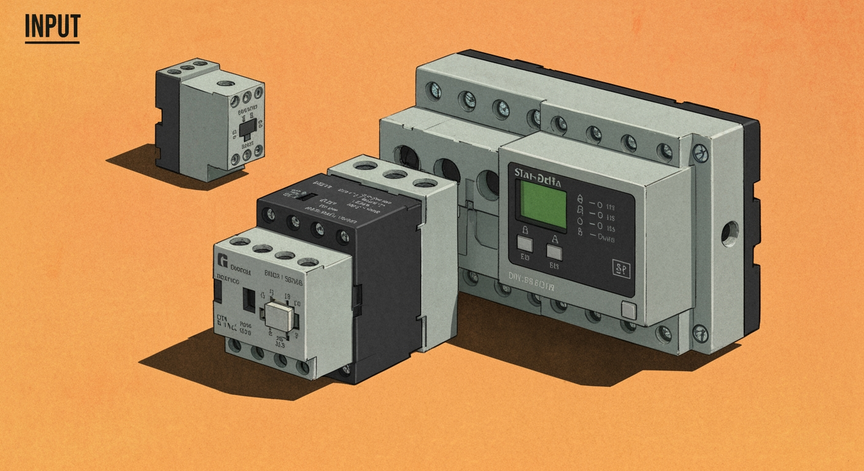

To soften this abrupt start, engineers use a clever technique called a Star-Delta (or Wye-Delta) starter. This method uses a set of contactors to temporarily reconfigure the motor's internal windings during startup, effectively putting it into a lower-power mode before switching to full power.

A standard three-phase motor has six terminals for its three internal windings. These are typically labeled U1, V1, W1 for one end of each winding, and U2, V2, W2 for the other ends. By connecting these terminals in different patterns, we can create either a Wye (Star) or a Delta configuration.

The key difference lies in the relationship between the line values (what the power grid supplies) and the phase values (what each motor winding experiences).

In a Wye connection, the windings meet at a common neutral point. The current flowing from the line goes directly through a single winding, but the voltage is split between two windings.

In a Delta connection, the windings are connected end-to-end in a closed loop. Each winding sees the full line voltage, but the line current splits between two windings.

A Star-Delta starter begins by connecting the motor windings in the Wye configuration. Let's see why this helps.

In the Wye configuration, the voltage across each phase winding is the line voltage divided by $\sqrt{3}$.

$V_{phase(Y)} = \frac{V_{line}}{\sqrt{3}}$

According to Ohm's law, the current through the winding ($I_{phase}$) is this voltage divided by the winding's impedance ($Z$).

$I_{phase(Y)} = \frac{V_{phase(Y)}}{Z} = \frac{V_{line}}{\sqrt{3} \cdot Z}$

Since $I_{line} = I_{phase}$ in a Wye circuit, the starting line current in Wye is:

$I_{start(Y)} = \frac{V_{line}}{\sqrt{3} \cdot Z}$

Now, let's compare that to a direct start in the Delta configuration, which is the motor's normal running state. In Delta, $V_{phase} = V_{line}$. So, the phase current is:

$I_{phase(\Delta)} = \frac{V_{line}}{Z}$

The line current in Delta is $\sqrt{3}$ times the phase current:

$I_{start(\Delta)} = \sqrt{3} \cdot I_{phase(\Delta)} = \sqrt{3} \cdot \frac{V_{line}}{Z}$

If we compare the two starting currents, we find the ratio:

$\frac{I_{start(Y)}}{I_{start(\Delta)}} = \frac{V_{line} / (\sqrt{3} \cdot Z)}{\sqrt{3} \cdot V_{line} / Z} = \frac{1}{\sqrt{3}} \cdot \frac{1}{\sqrt{3}} = \frac{1}{3}$

This simple reconfiguration drastically reduces the initial current draw.

This reduction in current doesn't come for free. A motor's torque is proportional to the square of the voltage applied to its windings ($T \propto V_{phase}^2$). Since the phase voltage in the Wye start is reduced by a factor of $\sqrt{3}$, the starting torque is also significantly lower.

$T_{start(Y)} \propto (V_{phase(Y)})^2 = (\frac{V_{line}}{\sqrt{3}})^2 = \frac{V_{line}^2}{3}$

Compared to the Delta start where $T_{start(\Delta)} \propto V_{line}^2$, the starting torque in Wye is also one-third of the full Delta torque.

This is a critical trade-off. For many applications like fans, centrifugal pumps, or unloaded conveyors, this reduced torque is sufficient to get the machine spinning. However, for high-inertia loads like large flywheels, loaded crushers, or piston compressors, a Star-Delta start might not provide enough initial turning force to overcome the load's resistance to motion.

The starter's control circuit manages the transition. It starts the motor in Wye, waits for it to reach about 75-80% of its full speed, and then momentarily disconnects power to switch the contactors, reconnecting the windings in the Delta configuration for full-power operation. This ensures the motor has enough momentum to handle the transition smoothly without a significant current spike.

To check your understanding of these concepts, try the quiz below.

By understanding the voltage and current relationships in both Wye and Delta configurations, we can appreciate the simple genius of the Star-Delta starter. It's a cost-effective and reliable method for reducing the stress of motor startup in many industrial applications.
