Electrical current is supposed to follow a specific path. It flows from a power source, through a device like a lightbulb or a motor, and then back to the source. This device, or "load," provides resistance, which controls the amount of current flowing through the circuit.

A short circuit happens when the current finds an easier, unintended path back to its source, bypassing the load entirely. It’s like a river suddenly finding a new, much steeper channel to the sea. Because this new path has very little resistance, a huge amount of current can flow.

This relationship is described by Ohm's Law, $I = V/R$, where $I$ is current, $V$ is voltage, and $R$ is resistance. In a short circuit, the resistance ($R$) drops to almost zero. As a result, the current ($I$) skyrockets to a dangerously high level.

Short circuits don't just happen on their own. They're usually the result of a failure or damage somewhere in the electrical system.

Damaged Insulation: Wires are coated in plastic or rubber insulation to keep the electricity contained. If this insulation gets old and brittle, is chewed by pests, or is damaged by a misplaced nail, the bare wires inside can touch each other. This creates a direct, low-resistance path.

Loose Connections: Sometimes, the connections within an outlet, switch, or appliance can loosen over time. This can cause wires to make contact when they shouldn't.

Faulty Appliances: The internal wiring of appliances can wear out or break. A frayed cord on a toaster or a problem inside a television can create the conditions for a short circuit.

Conductive Materials: If water or another conductive liquid seeps into an outlet or device, it can bridge the gap between conductors, creating a shortcut for the current.

The immediate consequence of a short circuit is a massive surge of current. This sudden rush of energy has to go somewhere, and it primarily converts into heat. The amount of heat generated is proportional to the square of the current ($P = I^2R$). Since the current is enormous, the heat is intense and instantaneous.

This extreme heat is the primary danger. It can:

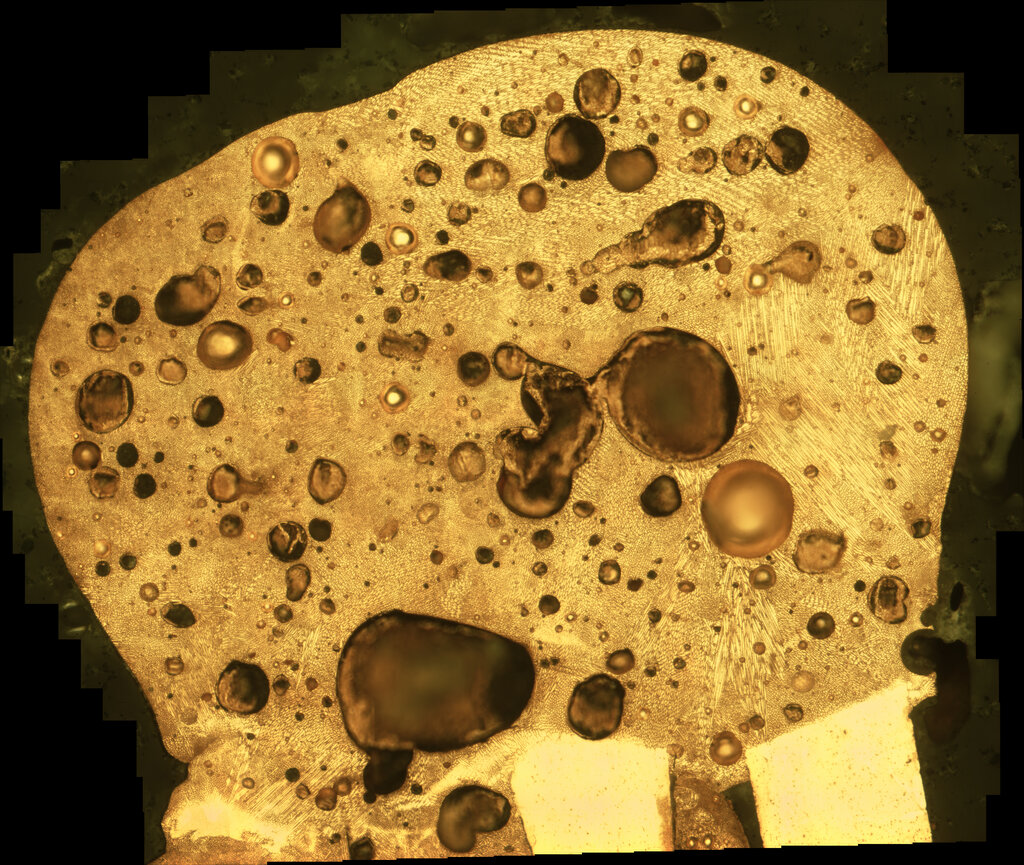

• Melt wire insulation: The plastic coating on wires melts away almost instantly, exposing the bare conductor and increasing the risk of more shorts.
• Start fires: The intense heat can easily ignite nearby flammable materials, such as wood, drywall, or fabric.
• Create an arc flash: In high-power systems, the short circuit can vaporize the metal conductors, creating a brilliant, explosive flash of light and energy known as an arc flash. This is extremely dangerous, producing a pressure wave, intense heat, and molten metal.

Now, let's test your knowledge of how these dangerous shortcuts work.
