Some materials, like copper, let electricity flow freely. They're called conductors. Others, like rubber, block electricity almost completely. They're insulators. Semiconductors are the fascinating materials that fall somewhere in between.

Think of it like a dam. A conductor is like an open floodgate, letting water rush through. An insulator is a solid wall, stopping the water completely. A semiconductor is like a gate that you can carefully open or close, allowing you to control the flow precisely. This property of control is what makes semiconductors the foundation of all modern electronics, from your phone to the most powerful supercomputers.

The most common semiconductor is silicon. In its pure form, called an intrinsic semiconductor, silicon atoms arrange themselves into a neat, orderly crystal lattice. Each silicon atom has four outer electrons, and it shares them with four neighbors to form stable connections called covalent bonds. At very low temperatures, all the electrons are locked into these bonds, and no electricity can flow. The silicon acts like an insulator.

When an electron breaks free, it leaves behind an empty spot in the bond. This vacancy is called a hole. The freed electron can now move through the crystal, carrying a negative charge. But the hole is also mobile. A nearby electron can easily jump into the hole, filling it but creating a new hole where the electron used to be. From the outside, it looks as if the positively charged hole is moving through the crystal.

So, in a semiconductor, there are two types of charge carriers:

1. Electrons: Negatively charged particles that are free to move.
2. Holes: Positively charged vacancies that move as electrons jump between them.

In a pure intrinsic semiconductor, every free electron creates one hole. The number of electrons and holes is perfectly balanced. However, there aren't many of them, so pure silicon doesn't conduct electricity very well.

To make semiconductors useful, we need to increase their conductivity in a predictable way. We do this through a process called doping. Doping involves intentionally adding a tiny, precise amount of an impurity element into the silicon crystal. This creates what's called an extrinsic semiconductor.

There are two main types of doping.

In n-type doping, we add an impurity that has five outer electrons, like phosphorus. When a phosphorus atom takes a silicon atom's place in the crystal, four of its outer electrons form bonds with the neighboring silicon atoms. But what about the fifth electron? It's left over, with no bond to hold it in place.

This fifth electron is only loosely attached to the phosphorus atom and can easily break away to become a free electron, ready to conduct electricity. The impurity atom is called a donor because it donates an electron. Since we are adding extra negative charge carriers (electrons), this is called n-type silicon. In n-type material, electrons are the majority carriers, and holes are the minority carriers.

In p-type doping, we do the opposite. We add an impurity that has only three outer electrons, like boron. When a boron atom replaces a silicon atom, it can only form three bonds with its neighbors. This leaves one of the neighboring silicon atoms with an un-bonded electron, creating a vacancy—a hole.

This hole can easily accept an electron from a nearby bond, causing the hole to move. The impurity atom is called an acceptor because it creates a hole that can accept an electron. Since we are creating extra positive charge carriers (holes), this is called p-type silicon. In p-type material, holes are the majority carriers, and electrons are the minority carriers.

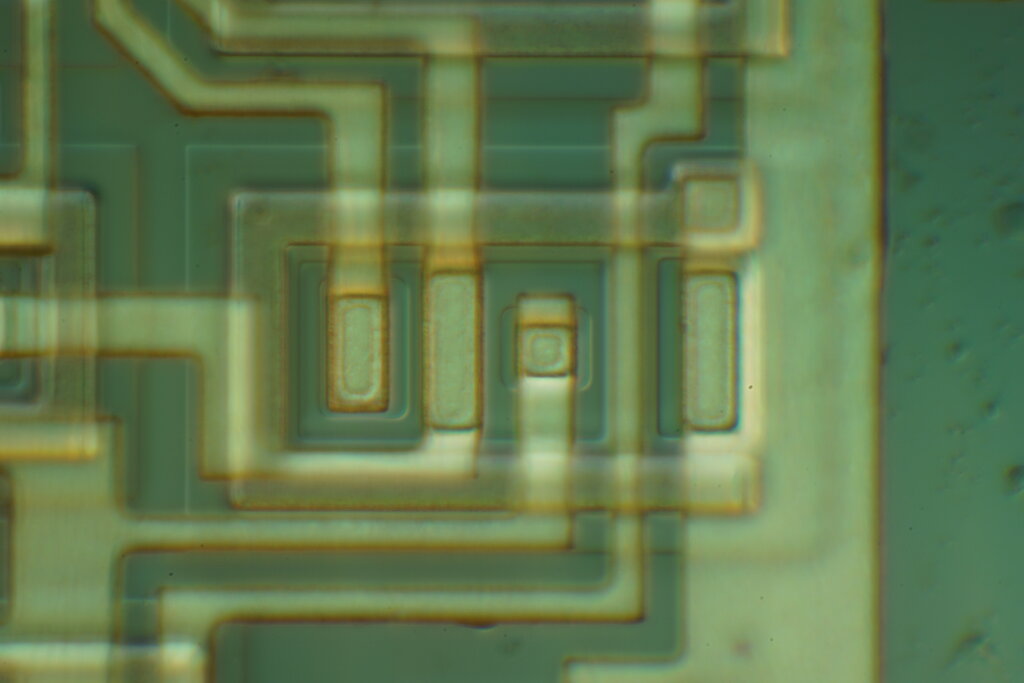

By doping silicon, we can precisely control its conductivity and determine whether electrons or holes are the dominant charge carriers. This ability to create n-type and p-type materials is the first crucial step in building semiconductor devices like diodes and transistors.
