You've likely mastered the basics: faders for volume, pan pots for stereo placement, and insert effects like EQ and compression. This is called series processing, where the audio signal flows through a single chain of effects, one after another. The output of the EQ becomes the input of the compressor, and so on. It's linear and effective for many tasks.

But to create mixes with professional depth, clarity, and impact, we need to move beyond a single, linear path. Advanced signal routing involves creating multiple pathways for your audio. This allows you to process signals in parallel and have different elements of your mix interact with each other in dynamic ways.

The core idea is simple: instead of replacing your original signal with a processed version, you blend the two together. This opens up a world of creative possibilities.

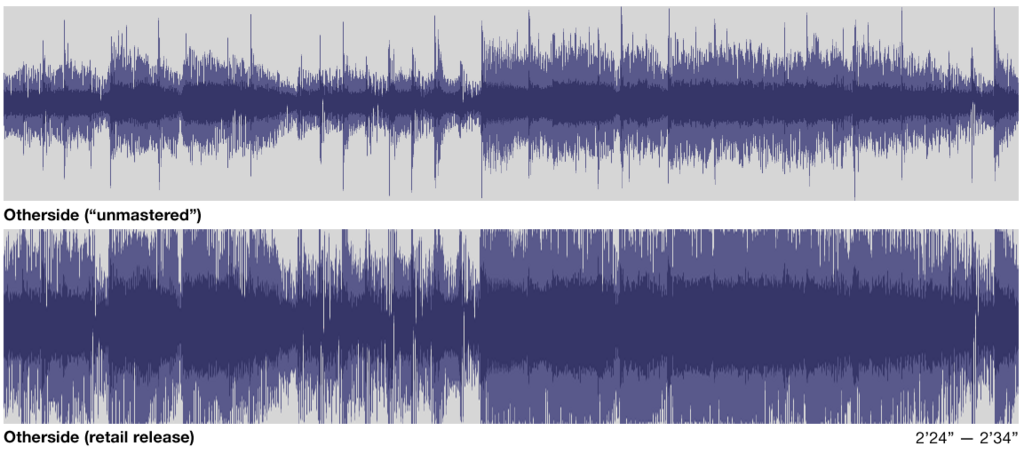

One of the most powerful techniques in modern mixing is parallel compression, often called 'New York' compression. Instead of applying a compressor directly to a track to control its peaks, you create a copy of the signal, compress that copy aggressively, and then blend it back in with the original, unprocessed signal.

Why do this? It gives you the best of both worlds. The original 'dry' signal keeps its sharp, punchy transients—the initial snap of a snare drum, for example. The heavily compressed 'wet' signal adds body, sustain, and loudness. When you blend them, you get a sound that's both dynamic and powerful, without the lifeless, squashed sound that over-compression can cause.

Setting this up is straightforward. You use an auxiliary bus (or aux track). Think of a bus as a separate destination you can send audio to.

1. Create an Aux Track: This track will receive the copied signal.
2. Insert a Compressor: Place a compressor on this new aux track. Set it with a high ratio (like 10:1 or higher), a fast attack, and a fast release. The goal is to heavily squash the signal.
3. Use a Send: On your source track (e.g., your drum group), create a send that routes a copy of the audio to the aux track you just made.
4. Blend to Taste: Start with the aux track's fader all the way down. Slowly bring it up to blend the compressed signal underneath the dry drums. You'll hear the drums get fatter and more powerful without losing their initial impact.

Side-chaining is a form of routing where the effect on one track is triggered by the audio from a different track. The most common use is side-chain compression for an effect called ducking—automatically lowering the volume of one instrument to make room for another.

The classic example is making a kick drum and bassline work together. Both instruments live in the low end of the frequency spectrum and can easily clash, turning your mix into mud. With side-chaining, you can make the bass momentarily 'duck' in volume every time the kick drum hits.

Here’s how it works:

1. Place a compressor on your bass track.
2. Activate the compressor's side-chain input.
3. Select the kick drum track as the side-chain source (the 'key' input).
4. Adjust the compressor's threshold and ratio. Now, instead of reacting to the bass signal, the compressor will react to the kick drum's signal. Every kick hit will trigger the compressor, turning the bass down for a fraction of a second.

This creates a pocket of space for the kick to punch through, resulting in a tighter, cleaner low end. This isn't just for kick and bass. You can use it to duck a reverb-heavy synth pad when a lead vocal comes in, ensuring the lyrics are always intelligible.

As your sessions grow, managing dozens of tracks becomes chaotic. This is where sub-grouping comes in. By routing related tracks to a single auxiliary bus, you gain powerful control over your mix.

Imagine you have ten drum tracks: kick, snare top, snare bottom, hi-hat, toms, and multiple overheads. Instead of adjusting ten faders, you can route them all to a 'Drum Bus'. Now you can control the entire drum kit's volume with one fader.

But the real power comes from bus processing. You can apply a single EQ or compressor to the entire drum bus. This not only saves CPU power but also helps 'glue' the individual elements together, making them sound like a cohesive instrument rather than a collection of separate recordings.

These routing techniques—parallel processing, side-chaining, and busing—are fundamental to building a clean, dynamic, and professional-sounding mix. They move you from being a simple fader-balancer to a true mix architect, designing the internal structure of your song.

Time to check your understanding of these signal flow techniques.
