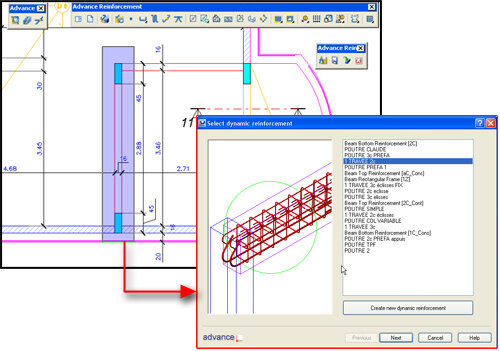

Structural drawings communicate intent. They show where reinforcement is needed, but they don't always speak the language of the fabrication shop. To bridge this gap, engineers use standardized shape codes. Instead of drawing every single bend and hook from scratch, they reference a universal library of rebar shapes.

Think of it like ordering a coffee. You don't describe the molecular structure of an espresso bean. You just say "latte." Similarly, an engineer specifies a "Shape Code 21," and the fabricator knows exactly what to make. This system eliminates ambiguity, reduces errors, and speeds up the entire construction process.

Two of the most influential standards governing these codes are BS 8666 and ISO 4066. While regional standards exist, these two provide a foundational framework used worldwide. They define not just the shapes themselves, but also the methods for measuring and tolerancing them.

These standards provide a visual catalog of shapes, each assigned a unique code. Let's look at a few common examples from BS 8666.

Each code is more than just a picture. It's a template with variable dimensions, typically labeled A, B, C, and so on. These parameters are filled in by the engineer on a document called a Bar Bending Schedule (BBS). The fabricator then uses these parameters to set their machines and produce the exact piece required.

The parameters A, B, C, D, and E correspond to the straight-line segment lengths of the bar. The standard defines exactly how to measure these lengths. For instance, for a simple L-bar (Shape Code 11), the dimensions A and B are measured from the outer surface of the bar to its end. For a U-bar (Shape Code 21), A and C are the legs, and B is the connecting segment.

Critically, these parameters do not include the length added by the bend itself. This is calculated separately based on the bar's diameter and the bending radius. The total cutting length of a bar is the sum of its straight segments plus the length of its curved portions, minus any adjustments for material stretching during bending.

For a bar bent to a standard 90-degree angle, the length added by the bend is often approximated. However, precise calculations are crucial for complex shapes. The total length ($L$) for a shape is a function of its parameters and the number of bends.

A reinforcing bar can't be bent into a perfectly sharp corner. It requires a gentle curve to avoid stressing the steel to the point of failure. This curve is achieved by bending the bar around a cylindrical tool called a mandrel.

The minimum radius of this bend is standardized to protect the bar's structural integrity. A bend that is too tight can cause micro-cracks on the outer face and crushing on the inner face. Standards like BS 8666 specify the minimum mandrel diameter as a multiple of the rebar's own diameter ($d$). Typically, for high-yield steel, the minimum internal radius of the bend is $2d$. This means the former, or mandrel, used to make the bend must have a diameter of at least $4d$.

Choosing the correct mandrel is non-negotiable. It ensures that the finished product matches the engineering specifications and behaves as expected under load. Once all the shapes, parameters, and bend details are defined, they are compiled into the Bar Bending Schedule, the final instruction manual for the fabrication shop.

Ready to test your knowledge? Let's see how these concepts apply in practice.

By mastering shape codes, engineers and fabricators ensure that the intricate designs on paper become the robust steel skeleton of a structure, efficiently and accurately.
