Physics of Seismic Design
Seismic Design Fundamentals
Designing for the Shake
Earthquakes don't happen in a vacuum. They happen in our world, shaking the ground beneath our homes, offices, and bridges. Seismic design isn't about stopping the ground from shaking—that's impossible. It's about designing structures that can withstand that shaking without collapsing, protecting the people inside.
The primary challenge comes from a simple law of physics: inertia. An object at rest wants to stay at rest. When the ground suddenly lurches sideways, the foundation of a building moves with it. But the top of the building, due to its inertia, tries to stay put. This difference in motion creates immense forces within the structure, pulling and pushing it in ways it wasn't designed to handle.
The Dance of a Building
Every structure has a natural way it wants to move, called its natural period. Think of a guitar string. A thick, tight string vibrates quickly (a short period), while a long, loose string vibrates slowly (a long period). Buildings are the same.
A short, stiff building has a short natural period, meaning it shakes back and forth rapidly. A tall, flexible skyscraper has a long natural period, causing it to sway slowly.
This becomes critical when the frequency of an earthquake's seismic waves matches a building's natural period. This phenomenon, called resonance, can dramatically amplify the shaking. It's like pushing someone on a swing. If you time your pushes to match the swing's natural rhythm, you can send them higher and higher with little effort. In an earthquake, resonance can send destructive energy surging through a structure.
So how do engineers control this movement? Two key properties are crucial: damping and ductility.
Damping
noun
The process by which a structure dissipates the energy from vibrations. It's like the shock absorbers in a car, which prevent the car from bouncing endlessly after hitting a bump.
Ductility is even more important. It's the ability of a material to bend, stretch, and deform without breaking. Think of a paperclip. You can bend it into different shapes before it snaps. That's ductile behavior. Glass, on the other hand, is brittle; it shatters with little warning. In seismic design, the goal is to create structures that behave like the paperclip, not the glass. A ductile building can bend and absorb an earthquake's energy, protecting its occupants even if it sustains permanent damage.
The Rules of the Game
To ensure public safety, engineers don't just rely on their own judgment. They follow comprehensive building codes that specify how to design structures in earthquake-prone areas. These codes are living documents, constantly updated based on new research and lessons learned from past earthquakes.
IS 1893 (Parts 1 to 5) – Criteria for Earthquake Resistant Design of Structures

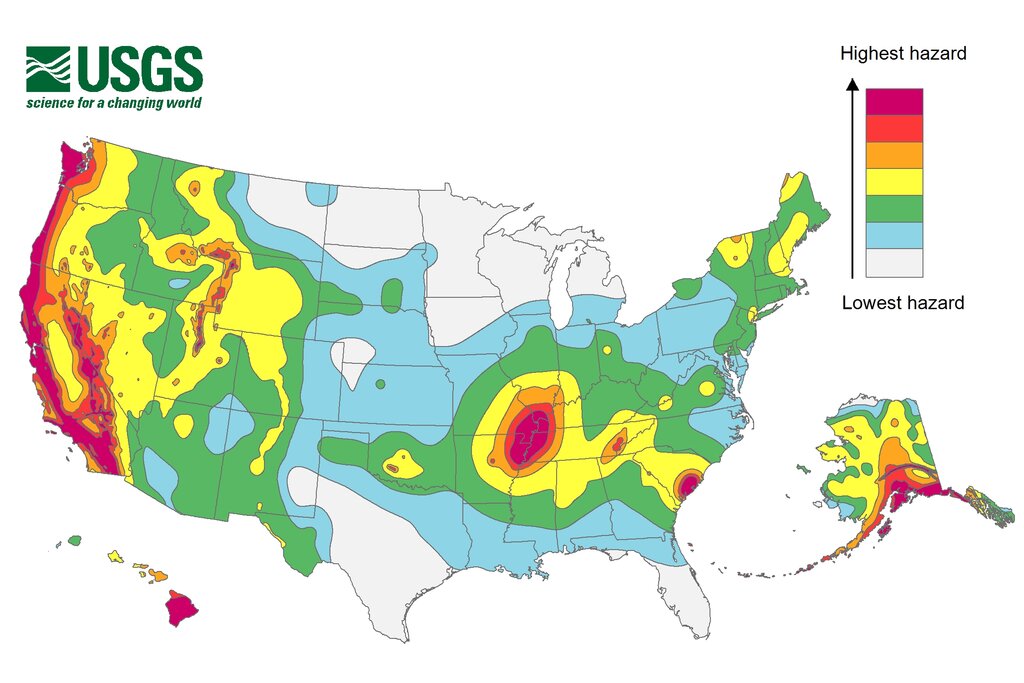

These codes provide a framework for engineers. They define the likely intensity of ground shaking for different locations, classify soil types (which can amplify shaking), and set minimum requirements for strength and ductility. They tell an engineer how to calculate the seismic loads—the forces an earthquake is expected to exert on a building. Following these codes is the first and most important step in creating a structure that can stand up to nature's power.
What is the primary physical principle that causes the top of a building to resist moving when its foundation is suddenly shifted by an earthquake?
The phenomenon where the frequency of seismic waves matches a building's natural period, dramatically amplifying the shaking, is known as ______.
Understanding these core principles—the nature of seismic hazards, the dynamics of how buildings move, and the codes that guide safe construction—is the foundation of earthquake engineering.
