At the heart of every computer, smartphone, and digital device is a system of logic that runs on just two values: true and false. We represent these values with the numbers 1 and 0. This system is called Boolean algebra, and it's the foundation for all of digital electronics and computer programming.

Instead of dealing with numbers you can add or subtract in the usual way, Boolean algebra uses logical operations to combine these true and false values. Let's look at the three most basic ones.

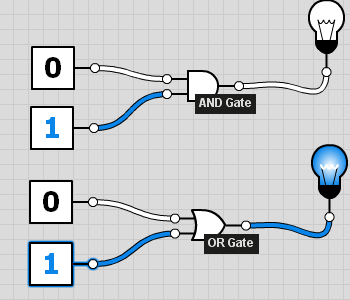

The fundamental building blocks of Boolean algebra are three operations: AND, OR, and NOT.

The OR operation is more flexible. For the result to be true, at least one of the conditions must be true. We use a plus sign (+) to represent OR, so A OR B becomes $A + B$.

A truth table is a simple chart that lists every possible combination of input values and shows the output for each. It's a handy way to define exactly how a logical operation works without any ambiguity.

Here is the truth table for the AND operation ($A \cdot B$). Notice the output is 1 only when both A and B are 1.

Next is the truth table for the OR operation ($A + B$). The output is 1 if A, B, or both are 1.

And finally, the truth table for the NOT operation ($\overline{A}$) is the simplest. It just flips the input value.

Just like regular algebra, Boolean algebra has laws that help us manipulate and simplify expressions. These laws are what allow us to design simpler, more efficient digital circuits.

The Commutative Law states that the order of variables doesn't matter for AND and OR operations. It's like saying 3 + 5 is the same as 5 + 3.

The Associative Law says that how we group variables doesn't matter when we are only using AND or only using OR. It's the same as (2 + 3) + 4 being equal to 2 + (3 + 4).

The Distributive Law shows us how to handle expressions with both AND and OR. It's a bit like factoring in regular algebra.

Using these laws, we can simplify complex Boolean expressions. For example, let's simplify the expression $A \cdot (A + B)$.

First, we apply the distributive law: $A \cdot (A + B) = (A \cdot A) + (A \cdot B)$

In Boolean algebra, anything AND-ed with itself is just itself ($A \cdot A = A$). So, our expression becomes: $A + (A \cdot B)$

This can be simplified further. If A is 1, the expression is $1 + (1 \cdot B)$, which is $1 + B$, which is always 1. If A is 0, the expression is $0 + (0 \cdot B)$, which is $0 + 0$, which is 0. So, the final result is just A!

$A \cdot (A + B) = A$

This kind of simplification is the key to creating efficient digital circuits. By reducing complex logic to its simplest form, we can build faster and cheaper hardware.

Ready to test your understanding of these building blocks?
