Imagine trying to build a complex machine, like a car engine or a smartphone, with parts from different factories around the world. How do you make sure every piece fits together perfectly? You need a precise, universal language that leaves no room for misinterpretation.

That's where Geometric Dimensioning and Tolerancing (GD&T) comes in. It's a symbolic language used on engineering drawings to define the shape and size of a part, as well as the acceptable variation in that shape and size. Think of it as a set of grammar rules for manufacturing.

This focus on form, fit, and function is what makes GD&T so powerful. It ensures that a part not only has the right dimensions but also the correct shape (form), can be assembled properly (fit), and works as intended (function).

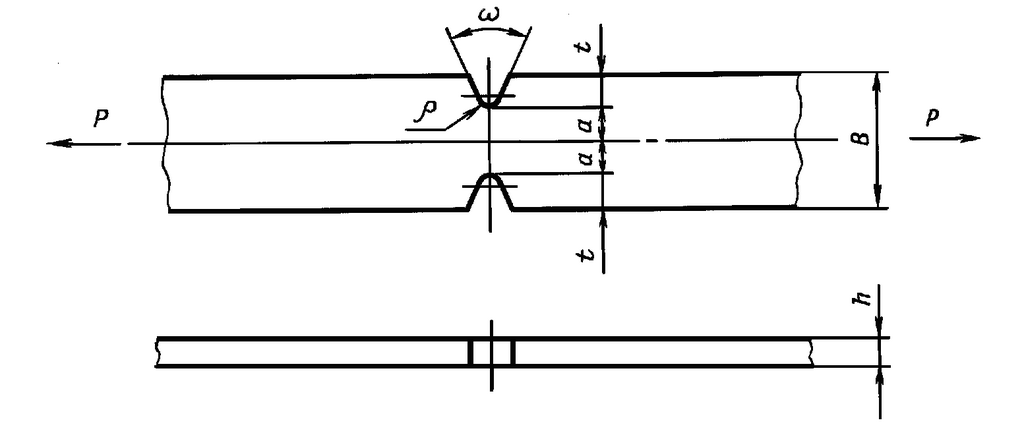

For a long time, engineers used a method called coordinate dimensioning. This system uses simple linear dimensions and angles, often with a general tolerance note like "all dimensions ±0.5 mm."

While this works for simple parts, it breaks down with more complex geometry. The problem is ambiguity. If you dimension a plate with four holes, traditional dimensioning tells you the size of the holes and their approximate location. But it doesn't say how straight the holes need to be, how flat the plate's surface must be, or how their locations can vary relative to each other.

This ambiguity can lead to parts that are technically within the stated dimensions but still don't fit or function correctly. Manufacturing might produce a perfectly valid part that the designer has to reject, wasting time and money.

GD&T solves this by providing symbols for specific geometric characteristics like flatness, perpendicularity, and position. It lets a designer say, "This surface needs to be flat within 0.1 mm," or "This hole's position can vary within a 0.2 mm diameter circle, but it must be perfectly perpendicular to this surface." This clarity has huge advantages:

• Universal Understanding: A drawing with GD&T means the same thing in any factory, anywhere.
• Improved Communication: It precisely captures the designer's intent, eliminating guesswork.
• Better Fit: It guarantees that parts will assemble correctly, every time.
• Cost Savings: By specifying tolerances only where they are functionally needed, it can actually allow for larger, less expensive tolerances on non-critical features.

For a language to be universal, it needs a standard dictionary and grammar. In the world of GD&T, that's the ASME Y14.5 standard. Published by the American Society of Mechanical Engineers, this document is the authoritative guideline for applying GD&T in the United States and many other countries.

The standard defines every symbol, rule, and concept used in GD&T. It ensures that when a designer puts a symbol on a drawing, the manufacturer and the quality inspector interpret it in exactly the same way. It's the foundation that makes global manufacturing and interchangeable parts possible.

Learning GD&T is like learning a new language. At first, the symbols can seem intimidating, but they are all built on a logical framework defined by the ASME Y14.5 standard. Understanding this framework is the key to creating and reading engineering drawings with confidence and precision.
