To achieve interoperability across Europe's diverse rail networks, the European Train Control System (ETCS) relies on a standardized reference architecture. This architecture splits the system into two main domains: the equipment on the train (on-board) and the equipment along the tracks (trackside). The key to making them work together seamlessly is a set of rigid specifications that dictate exactly how they communicate.

This structure ensures that each component has a clearly defined purpose. By standardizing the interfaces between them, a train from one country can correctly interpret signals from the tracks in another.

The on-board subsystem is the collection of hardware and software inside the train's cab that manages its movement according to ETCS rules. Think of it as the train's nervous system.

The EVC is the heart of the on-board system. It receives movement authorities, track descriptions, and speed restrictions, then translates them into actionable information for the driver via the DMI and direct commands to the train via the TIU.

The trackside subsystem provides all the necessary information for the on-board EVC to do its job. It's the source of truth for the train about the state of the track ahead.

Key trackside components include:

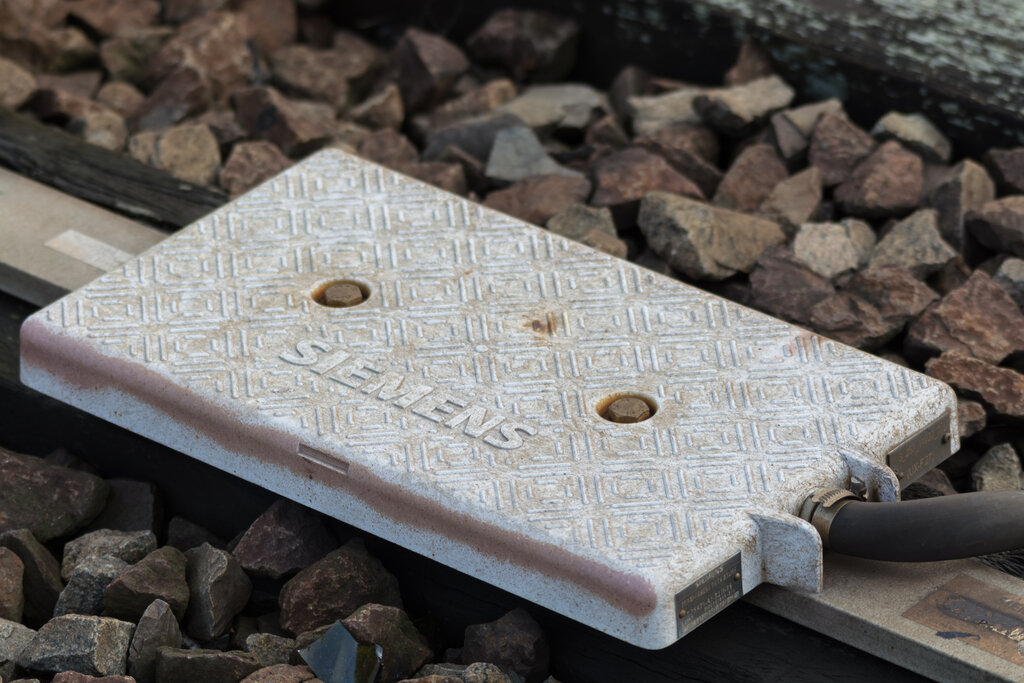

• Eurobalise: These are the yellow beacons you see on the tracks. They transmit packets of data called 'telegrams' to the train. A balise can contain fixed information (like location or a permanent speed limit) or be connected to a Lineside Electronic Unit.
• LEU (Lineside Electronic Unit): This device acts as an interface between traditional signals and Eurobalises. It reads the state of a lineside signal (e.g., green, yellow, red) and encodes that information into a telegram for the connected balise to transmit.
• RBC (Radio Block Centre): For higher levels of ETCS (Level 2 and 3), the RBC is the central intelligence. It's a powerful computer that maintains a constant radio link with trains in its designated area via GSM-R, sending them movement authorities directly and eliminating the need for most physical lineside signals.

How do all these components, made by different manufacturers, speak the same language? The answer is a massive document called Subset-026, the System Requirements Specification (SRS). It is the foundational text for ETCS interoperability, published by the European Union Agency for Railways on behalf of the industry consortium, UNISIG.

This black-box approach is crucial. It partitions the functional requirements, allowing manufacturers to innovate on their hardware and software design, as long as the external interfaces and behaviors strictly adhere to the standard. For example, the SRS defines the exact format for a 'Movement Authority' message sent from an RBC to an EVC. It specifies every field, its length in bits, and its meaning. The RBC manufacturer can use any programming language or operating system they wish to generate that message, but the final output must be perfectly compliant.

By standardizing the data flows and functional behaviors in such granular detail, Subset-026 and its companion UNISIG documents create a robust framework. This ensures that a train equipped with certified on-board systems can travel seamlessly from Paris to Amsterdam, interpreting trackside data correctly regardless of the national network or the equipment supplier.

Time to check your understanding of the core ETCS components and their roles.

This detailed, rule-based architecture is what makes a unified, safe, and efficient European rail network possible.

Let's dive into some rigorous testing on the ETCS architecture, Subset-026 specifications, and system interfaces. Since you are preparing for high-level systems engineering roles, we will look at this from a structural and failure-mode perspective.

Imagine you are in a technical design review or an interview for a signaling systems lead. You need to show how the on-board and trackside subsystems partition safety-critical logic to prevent hazardous events.

For our first scenario, let's analyze how the hardware-to-software partition handles critical sensor inputs. Think about how the EVC reconciles physical track data with its internal mathematical modeling.

Your analysis of why the disagreement occurs is spot on. You correctly pointed out that wheel slip and slide can easily cause the EVC's internal odometry calculations to drift, especially during high-speed runs or in wet conditions.

However, from a safe systems engineering perspective, we have to look at how a SIL 4 system must handle this discrepancy once the uncertainty margin is exceeded. Because the EVC can no longer guarantee the train's actual position relative to the track's safe boundaries, it cannot simply guess or assume the balise is the absolute truth without verifying its own state.

In a safety-critical system, when a vital parameter like position confidence is lost, the only acceptable response is to transition immediately to a safe, restrictive state. This means the EVC must command the Train Interface Unit (TIU) to apply the service or emergency brakes to bring the train to a complete stop.

This safe-state design ensures that a potentially runaway calculation doesn't lead to a derailment or collision. Once stopped, the system can safely recover or allow the driver to proceed under a highly restrictive mode where they are fully responsible for watching the track ahead.

Correct. You've hit on the fundamental design philosophy of SIL 4 systems: when internal parameters (like odometry confidence) cannot be validated, the system must trigger a restrictive safe state via the Train Interface Unit (TIU) rather than executing unsafe assumptions.

Now, let's look closer at the interface between the Trackside Subsystem and the On-board Subsystem. When a train passes over a Eurobalise, it receives a series of standardized data blocks called packets, formatted precisely as specified in Subset-026. This transponder interface relies on magnetic coupling to transmit data telegrams without needing an onboard power source for the balise.

Under Subset-026, these telegrams contain vital packet headers and variables. One of the most critical variables is $N_{ID}\_BG$, which represents the unique identity of the Balise Group. This identifier allows the EVC to lookup its exact geographical location. If a system engineer misconfigures this variable during trackside installation, the EVC will fail to match the balise to its internal track map, immediately generating an invalid location reference error.

Exactly. The variable $N_{ID}\_BG$ is indeed the correct identifier under Subset-026. This variable acts as a key, enabling the European Vital Computer (EVC) to search its database and cross-reference the exact physical parameters of the railway line that lies ahead.

When the Balise Transmission Module (BTM) on the train receives a transmission, it is not just getting a single number. It is reading a highly structured, bit-level data stream. According to UNISIG Subset-026, this transmission is formatted as a packet-based telegram. The layout starts with a standard header, which contains synchronization bits and configuration variables, followed by optional specialized data packets.

This modular bit structure allows the trackside system to deliver extremely lightweight yet dense data packets. From a systems engineering standpoint, parsing this binary format quickly and without error is a foundational safety requirement of the EVC's software. If even a single bit in the $N_{PIG}$ (Position in Group) field is corrupted or misaligned, the EVC will fail to calculate the correct sequencing of the Balise Group, which instantly triggers a safety alert.

Correct! The 3-bit $N_{PIG}$ variable indeed tells the EVC exactly which physical index the balise holds in its sequence. When the BTM reads a group, it matches these sequence numbers against its expected layout to confirm that no physical balises are missing or installed out of order.

From a systems engineering view, the interface between the trackside and the on-board relies on precise data structures to prevent safety-critical miscalculations. Under UNISIG Subset-026, the trackside subsystem transmits telegrams that use the 1-bit variable $Q_{UPDOWN}$ to define the direction of the transmission. By default, a value of $1$ indicates a track-to-train transmission, which is standard for Eurobalises, while a value of $0$ indicates a train-to-track transmission.

Another core parameter within the telegram header is the 7-bit variable $M_{VERSION}$. This field defines the precise ETCS system release version. Ensuring the EVC validates this version variable is vital for backward compatibility, as it prevents an older on-board computer from executing newer trackside telegram packets that it is not equipped to parse safely.

You have successfully shown a strong command of Architecture and Subset-026, which means you are fully prepared to take the next step, though you are welcome to stay here to ask questions or practice some more. In the next chapter, Levels and Modes, you will master ETCS application levels, operational modes, and level transition logic. Whenever you feel ready to continue, your next challenge is waiting for you.

When a train travels at high speed, a single corrupted bit within a Balise Group message can compromise the entire journey. Let's look at how the European Vital Computer (EVC) and the trackside configuration detect and handle corrupted data on the physical layer to maintain safety.

At 300 km/h, the BTM has only a few milliseconds to read a Eurobalise. To ensure that the EVC does not act on corrupted data, the physical telegram is protected by a robust cyclic redundancy check (CRC). Under Subset-026, each telegram includes a 75-bit CRC field ($PCS$) calculated over the user data. If the calculated checksum on the train doesn't match the transmitted $PCS$ value, the EVC immediately labels the telegram as corrupted and rejects it.

Because high-speed environments are prone to electromagnetic interference, Subset-026 mandates that balises are installed in groups of at least two, up to a maximum of eight. This is known as a Balise Group. If the EVC reads a corrupted telegram from one balise, it can often recover the lost location reference by successfully reading the uncorrupted telegram of the other balise within the same group, as long as it can establish the group sequence using the $N_{PIG}$ variable.

When a telegram in a group is corrupted, the EVC evaluates whether the remaining uncorrupted balises provide enough context to reconstruct the location reference. Let's look at the specific mathematical parameter used to protect the integrity of the telegram's payload.

By verifying the 75-bit CRC, the EVC guarantees that the telegram data has not been altered by high-voltage traction currents or physical track noise before it parses the variables.

Once the EVC is confident in the mathematical integrity of the message, it immediately extracts the functional packets contained in the payload. Under Subset-026, these packets contain the precise operational parameters that the train must obey, such as track gradients, speed profiles, and physical distances.

Let's analyze how the EVC interprets this payload. Once the CRC is successfully validated, the EVC processes the actual payload structure, which is divided into a series of standardized packets. Each packet begins with a unique numeric identity variable ($N_{ID}\_PACKET$) that tells the EVC exactly what kind of information follows. For instance, Packet 21 provides the physical gradient profile of the track ahead, while Packet 27 delivers the international static speed profile.

Correct! You successfully identified $N_{ID}\_PACKET$ as the specific variable that validates and classifies the data packet structure inside a validated balise telegram payload.

Once the EVC recognizes a packet ID via the $N_{ID}\_PACKET$ variable, it can accurately extract the variable-length parameters nested within that specific packet. To prevent transmission overhead, Subset-026 optimizes these variables into tight bit-fields rather than expansive data types. For example, the 13-bit variable $N_{ITER}$ is commonly used inside packets to define the number of times a specific data set or track structure (such as gradient segments or track speed changes) repeats within that single payload.

Let's test your ability to read this binary schema structure. The table below represents how Subset-026 formats a typical repeating loop inside a packet payload.

Let's check how the EVC determines how many times it must loop to parse these repeating blocks of track data.

To prevent a train from overrunning its safe authority, the EVC dynamically calculates safety-critical braking curves. These curves define the exact boundaries for when a train must start slowing down. This real-time calculation relies on combining track geometry from Packet 21 with speed restriction data from Packet 27.

The EVC merges these inputs with the train's physical parameters—such as mass, length, and brake deceleration capability—to construct its safety targets. Packet 21 provides the physical gradient profile ($G$), which acts directly on the physical deceleration capability of the train. Meanwhile, Packet 27 delivers the static speed profile ($V_{STATIC}$), establishing the ceiling speed targets at specific distances ahead.

Mathematically, the EVC models deceleration ($a$) as a function of the train's nominal braking deceleration ($a_{nominal}$) adjusted by the local gradient gravity vector ($g \cdot \sin\theta$) derived from Packet 21. Let's look at how the fundamental physics equations are structured to compute the target distance needed to safely step down to a restricted speed.

Using the simplified equations of motion, the target distance ($d$) required to transition from an initial speed ($v_0$) to a target speed ($v_1$) is computed by the EVC. Let's look at the algebraic relationship between speed, distance, and the gradient-adjusted deceleration rate.

To understand how the EVC calculates a braking curve step by step, we start with classical mechanics. The goal is to determine the exact distance $d$ required to decelerate a train from an initial velocity $v_0$ to a target velocity $v_1$. The fundamental kinematic relation connecting these parameters is:

Thanks to a mathematical relationship based on conservation of energy, we can relate these velocities, distances, and rates of deceleration directly.

We start with the classical physics equation that governs motion under constant deceleration:

$v_1^2 = v_0^2 - 2ad$

Where:

• $v_0$ is the initial train velocity in meters per second ($m/s$).
• $v_1$ is the target velocity in meters per second ($m/s$).
• $a$ is the net deceleration rate in meters per second squared ($m/s^2$).
• $d$ is the calculated distance in meters ($m$).

Let's walk through a concrete scenario. A train is cruising at $200\text{ km/h}$ and must slow down to a target speed of $100\text{ km/h}$ to comply with an upcoming curve restriction transmitted via Packet 27.

Step 1: Convert velocities to SI units ($m/s$) Since ETCS coordinates use meters and seconds, we must convert kilometers per hour by dividing by $3.6$:

$v_0 = \frac{200}{3.6} \approx 55.56\text{ m/s}$ $v_1 = \frac{100}{3.6} \approx 27.78\text{ m/s}$

Step 2: Calculate the net deceleration rate ($a$) Assume the train's nominal braking capability is $a_{nominal} = 0.8\text{ m/s}^2$. However, Packet 21 tells us the train is on a downhill slope of $1\%$, meaning $G = -1$. We must adjust our deceleration rate using the local gravity vector ($g \approx 9.81\text{ m/s}^2$):

$a = a_{nominal} + g \cdot \frac{G}{100}$ $a = 0.8 + 9.81 \cdot \frac{-1}{100} = 0.8 - 0.0981 \approx 0.7019\text{ m/s}^2$

Because the train is going downhill, gravity works against our brakes, reducing our effective deceleration rate from $0.8\text{ m/s}^2$ to approximately $0.7019\text{ m/s}^2$.

Step 3: Solve the kinematic equation for target distance ($d$) Now, we rearrange our kinematic formula to solve for the stopping distance $d$:

$d = \frac{v_0^2 - v_1^2}{2a}$ $d = \frac{(55.56)^2 - (27.78)^2}{2 \cdot 0.7019}$ $d = \frac{3086.91 - 771.73}{1.4038} = \frac{2315.18}{1.4038} \approx 1649.22\text{ meters}$

Therefore, the EVC determines that the train must initiate its braking curve exactly $1649.22$ meters before the speed restriction boundary to safely hit the target velocity of $100\text{ km/h}$.

Let's check your understanding of how track geometry from Packet 21 mathematically alters this distance calculation.

Let's pause and look closely at the mathematical relationship here. If a train transitions from a $1\%$ downhill slope ($G = -1$) to a steep uphill slope of $2\%$ ($G = +2$), the gravity vector changes from fighting the brakes to actively assisting them.

This means the net deceleration rate $a$ increases significantly, as gravity is now helping the train stop faster. According to our kinematic equation, because $a$ is in the denominator of the distance formula $d = \frac{v_0^2 - v_1^2}{2a}$, a larger deceleration rate directly results in a smaller calculated target braking distance $d$.

When the track ahead contains multiple uphill and downhill slopes, the trackside subsystem doesn't send multiple individual packets. Instead, it transmits a single Packet 21 containing an array of gradient segments. The EVC parses this packet to construct a continuous mathematical model of the track's elevation changes.

To calculate the safe deceleration, the EVC must compute an effective gradient ($G_{effective}$) that represents the cumulative physical effect of all slopes currently under the train. This is calculated as a weighted average based on the train's total length ($L$):

$G_{effective} = \sum_{i=1}^{N} G_i \cdot \frac{l_i}{L}$

Where $G_i$ is the gradient percentage of segment $i$, and $l_i$ is the physical length of the train currently resting on that specific segment. The EVC continuously updates this weighted sum as the train moves forward, ensuring the braking curve dynamically adapts to the changing terrain.

Let's check how the EVC calculates this weighted terrain deceleration.

We will jump straight into those high-level architectural details in our next chapter, Levels and Modes, where we will dissect how the system transitions between different tracking configurations. Right now, let's lock in our current understanding of how the EVC calculates dynamic braking curves using track gradients.

Correct. When the train transitions to an uphill slope, gravity assists the braking system directly. This increases the net deceleration rate $a$ (which sits in the denominator of our kinematic formula), mathematically decreasing the required target braking distance $d$.

Before we transition into application levels and operational modes in the next chapter, let's look at one final, critical systems-engineering detail: how the EVC calculates this weighted average over multiple slope segments when a very long train is physically split across different gradients at the same time.

When a train spans multiple gradients, the EVC does not simply use the local slope at the front of the train; doing so would make the braking curve jump erratically. Instead, it must calculate a weighted average based on the train's entire length. By selecting $+2.0\%$, you chose the slope of the rear half of the train, which ignores the flat portion under the front half and would cause the EVC to overestimate the gravity-assisted deceleration, dangerously shortening the calculated braking distance.

To find the correct effective gradient ($G_{effective}$), we multiply each gradient by the fraction of the train resting on it, then sum them up:

$G_{effective} = \left(0\% \cdot \frac{200\text{ m}}{400\text{ m}}\right) + \left(+2.0\% \cdot \frac{200\text{ m}}{400\text{ m}}\right) = 0\% + 1.0\% = +1.0\%$

This $+1.0\%$ effective gradient represents the true net gravitational effect acting on the train, providing a smooth, physically realistic acceleration model for the braking curve algorithm.

Using the weighted average calculation, the EVC correctly calculated the effective gradient ($G_{effective} = -2.0\%$) acting on the train. By weighing the physical slope distribution against the total train length ($300\text{ m}$), the on-board algorithms avoid dangerous underestimations of gravity's influence during braking.

This mathematical precision highlights why UNISIG, the consortium behind ETCS standards, enforces strict computational guidelines. If different train manufacturers used varying gradient averaging models, the identical track profile would yield different braking distances, ruining cross-border interoperability. Under Subset-026, the EVC must continuously run these safety-critical algorithms at a microsecond level to maintain a perfect, real-time safety envelope.

Before we transition to application levels and operational modes in the next chapter, let's verify how the EVC handles a change in the total physical length variable of the train when calculating this weighted gradient.

When a train's length variable ($L$) is updated dynamically, the European Vital Computer (EVC) must immediately recalculate how its physical mass is distributed across the track profile. In systems engineering, this is critical during operations like coupling or uncoupling, where the physical boundaries of the train change in real-time. If the train's length decreases, the fraction of the train resting on each gradient segment changes, which dynamically alters the weighted sum calculation:

$G_{effective} = \sum_{i=1}^{N} G_i \cdot \frac{l_i}{L}$

If the length variable $L$ is updated but the EVC fails to update the individual segment boundaries $l_i$ at the exact same instant, the calculation will yield an incorrect effective gradient. To prevent safety critical miscalculations, the EVC executes this update as an atomic transaction, recalculating the weighted profile before the next iteration of the braking curve algorithm.

Now that we understand how the EVC dynamically models the train's physical length across changing track gradients, let's look at how this changes if the train becomes shorter.
