Introduction to E-Ink Technology
The Paper That Remembers
Most screens you use, from your phone to your TV, work by shining light into your eyes. They are emissive displays. But what if a screen could work more like paper, simply reflecting the light around you? That's the idea behind Electronic Ink, or E-Ink.

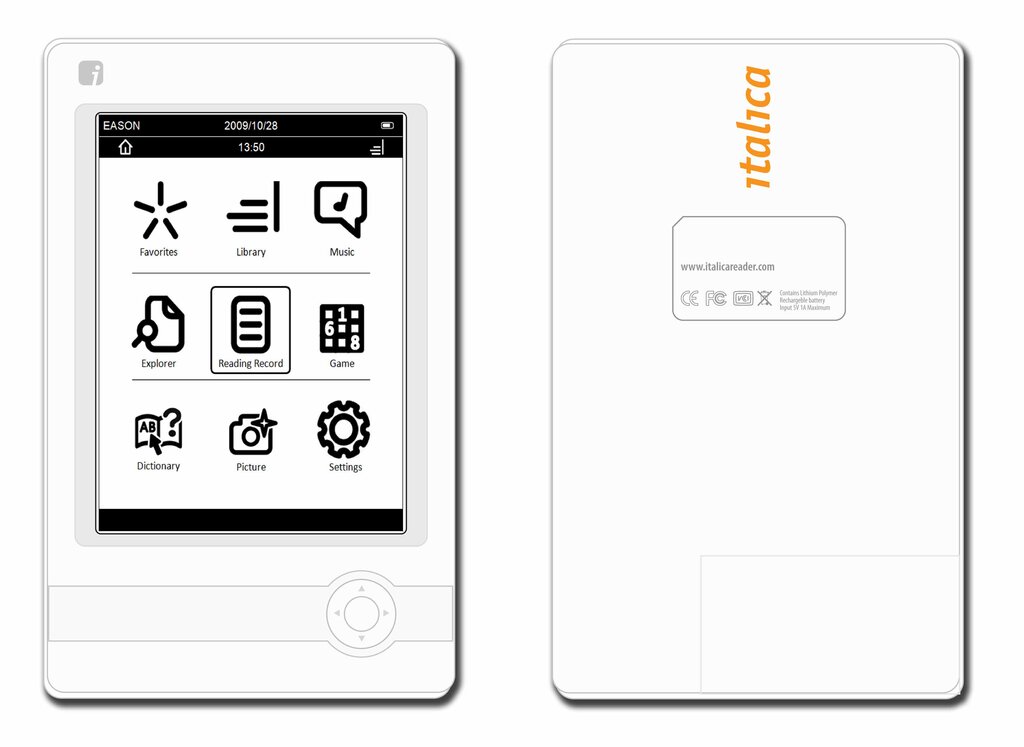

E-Ink is a type of electronic paper. It's designed to mimic the appearance of ordinary ink on a printed page. Instead of a bright backlight, it uses ambient light, making it comfortable to read for long periods, even in direct sunlight. This technology forms the basis for most e-readers.
Millions of Tiny Capsules
So how does it work without a light source? The magic is in millions of tiny microcapsules, each about the width of a human hair. These capsules are filled with a clear fluid containing thousands of minuscule particles.
Each microcapsule contains both white particles and black particles. The white particles carry a positive charge, while the black particles carry a negative charge. These capsules are suspended in a layer sandwiched between two electrodes.
When an electric field is applied, the particles move. Applying a negative charge to the bottom electrode pushes the negatively charged black particles to the top surface, making that spot on the screen appear black. Applying a positive charge does the opposite, pushing the positively charged white particles to the top, making the spot appear white. By controlling the field across the entire screen, you can form text and images.
Reflective and Bistable
This unique mechanism gives E-Ink two key properties that set it apart from traditional LCD or OLED screens.
First, it's a reflective display. It doesn't generate its own light. Instead, it reflects ambient light from the environment, just like ink on paper. This is why E-Ink screens are so easy on the eyes and perfectly readable in bright sunlight, where a phone screen would be washed out by glare.
Second, E-Ink is bistable. This means the screen can hold an image or page of text without using any electricity. The black and white particles stay in place until a new electric field is applied to move them again. Power is only consumed when the display changes, such as when you turn the page in an e-book. In contrast, an LCD screen has to constantly refresh its image 30 to 60 times every second, which requires a continuous supply of power. This bistable nature is why an e-reader's battery can last for weeks on a single charge.
| Feature | E-Ink Display | LCD / OLED Display |
|---|---|---|
| Light Source | Reflective (uses ambient light) | Emissive (creates its own light) |
| Power Usage | Only when changing the image | Continuous power needed to stay on |
| Readability | Excellent in bright light | Can be difficult in bright light |
| Image State | Bistable (image stays without power) | Volatile (requires constant refresh) |
These core principles, using charged particles in microcapsules to create reflective and stable images, are what define E-Ink and give it its paper-like qualities.
