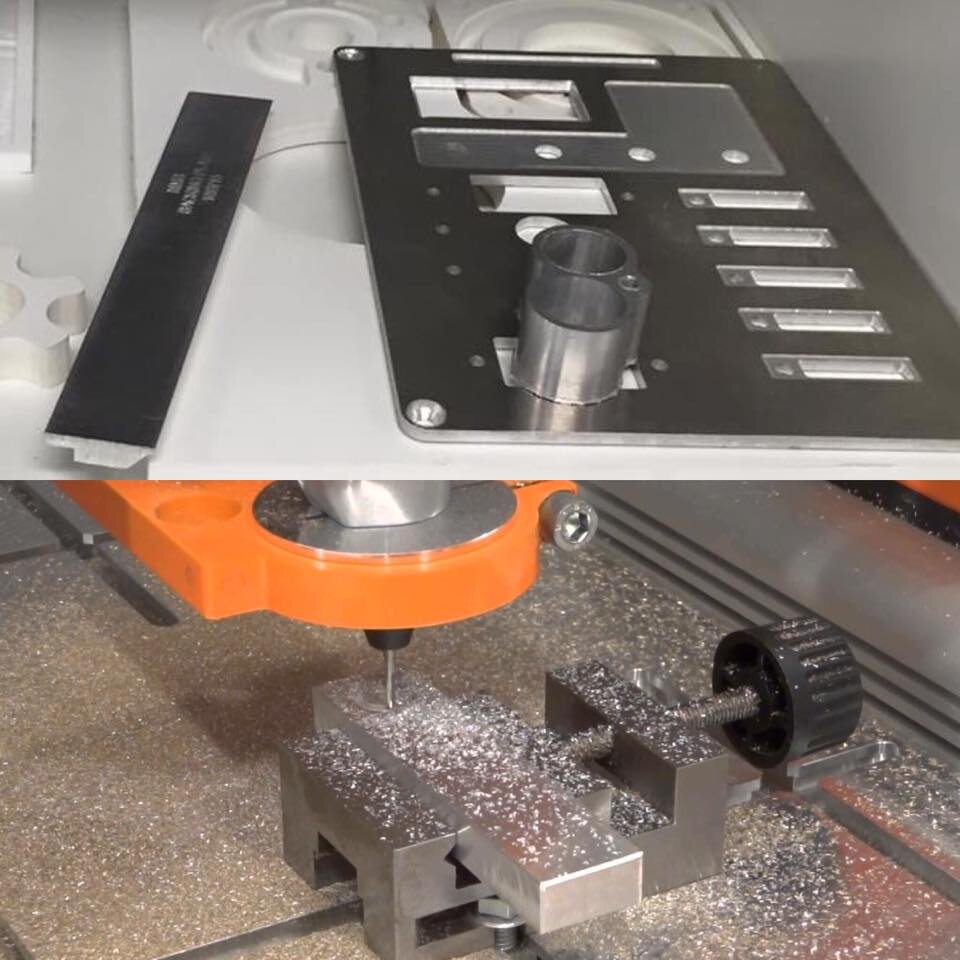

A CNC machine has its own map of the world, called the Machine Coordinate System (MCS). Its home position is the absolute origin, or (0,0,0). But the raw block of metal or wood you clamp onto its table could be anywhere. The machine needs to know exactly where your part is before it can start cutting.

This is where work offsets come in. A work offset is a specific point you define on your workpiece that acts as the new origin for all the commands in your program. It's like putting a "You Are Here" pin on a map. Instead of writing a program based on the machine's home position, which could be far away, you write it relative to a convenient point on your part, like a corner or the center.

This bridge between the machine's coordinates and your part's coordinates is the fundamental purpose of a work offset. It allows you to use the same program on parts placed in different locations on the machine bed, simply by changing the offset.

CNC machines store work offsets in memory locations that you can call up using specific G-codes. The most common codes for work offsets are G54 through G59. Think of them as six different memory slots for storing six different "You Are Here" pins.

This is incredibly useful when you're making multiple parts at once. Imagine you have three identical blocks of aluminum secured to your machine's table. You can set a unique work offset for each one:

• G54: Origin of the first block
• G55: Origin of the second block
• G56: Origin of the third block

You can then run the same machining program three times. Before each run, you simply activate the correct work offset (G54, G55, or G56) at the beginning of the program, and the machine will perform the operations in the right location.

To set a work offset, you need to tell the machine the distance from its home position (the machine's origin) to your desired part origin (the work origin). This involves finding the precise X, Y, and Z coordinates of your chosen zero point on the workpiece.

Machinists typically use precision tools to do this. An edge finder can locate the exact edge of a part, while a probe can automatically touch different surfaces and record their locations. A simpler method is to carefully bring a cutting tool to the surface of the part and manually record the machine's coordinates.

These X, Y, and Z values are then saved into one of the work offset registers, like G54. Once G54 is active, if your program commands the machine to move to X0 Y0 Z0, it won't go to the machine's home position. Instead, it will move to the specific origin you just defined on your part.

The accuracy of your final part depends entirely on how carefully you set this zero point. An error of just a few thousandths of an inch when setting the offset will be repeated in every feature the machine cuts. Before cutting any material, it's common practice to do a "dry run." This involves running the program in the air, several inches above the part, to visually confirm that the tool paths look correct and are in the right location.

Ready to test your knowledge?

Understanding work offsets is a crucial step in moving from a digital design to a physical part. By defining this simple reference point, you give the machine the context it needs to do its job accurately.
