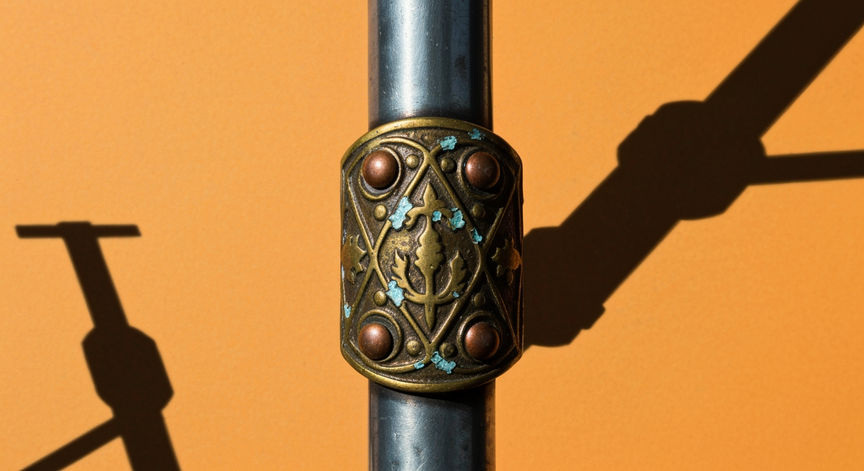

The transition from cast bronze ornaments to modern die-struck badges represents a fundamental shift in manufacturing philosophy, moving from molten-metal processes to solid-state plastic deformation. Investment casting, while suitable for complex geometries in low volumes, is inherently limited by cooling-induced porosity, coarse grain structures, and surface finish inconsistencies. These factors make it unsuitable for the high-fidelity, high-volume production required by the mid-20th century.

Die-striking, a cold-working process analogous to coining, overcomes these limitations. It operates by subjecting a precisely cut blank of a ductile base material to forces exceeding its elastic limit, forcing the metal to flow into the negative relief of a hardened steel die. With hydraulic presses delivering forces up to 600 tons, the material is plastically deformed, achieving sub-millimeter detail with exceptional surface finish and dimensional repeatability. This method eliminates the defects associated with casting and enables rapid, automated production.

The choice of material is critical. Alloys such as Hi-Glo and Rho-Glo were specifically formulated for their unique combination of ductility, corrosion resistance, and ability to achieve a high-luster finish. These are typically aluminum or stainless steel-based alloys with controlled additions of elements like magnesium, chromium, and nickel to optimize their mechanical properties for cold forming.

During the die-striking event, the alloy undergoes significant work hardening (or strain hardening). At the microstructural level, this process involves the generation and multiplication of dislocations within the crystalline lattice. As deformation proceeds, these dislocations move and interact, becoming entangled and impeding further movement. This entanglement is what increases the material's yield strength and hardness, but it comes at the cost of reduced ductility, making the material more brittle.

For badges with deep relief, a single strike is insufficient. The material would fracture before fully conforming to the die. This necessitates a multi-hit stamping process, where the badge is struck, then removed and annealed before subsequent strikes. This cycle of work hardening and annealing is crucial for achieving sharp, deep details without compromising the material's integrity.

The annealing cycle is a controlled heat treatment designed to reverse the effects of work hardening. It consists of three stages:

1. Recovery: At lower temperatures, dislocations rearrange themselves into lower-energy configurations, which slightly reduces internal stresses without changing the grain structure.
2. Recrystallization: As the temperature increases to a critical point (typically 0.3-0.5 times the material's melting point in Kelvin), new, strain-free grains nucleate and grow, consuming the old, deformed grains. This dramatically reduces the material's hardness and strength while restoring its ductility.
3. Grain Growth: If held at temperature for too long, the new grains will continue to grow, which can be detrimental. Larger grains can lead to a rough "orange peel" surface finish in subsequent forming operations. Therefore, time and temperature must be precisely controlled.

This process is vital not only for enabling multi-hit stamping but also for the long-term durability of the finished part. By relieving the high internal stresses locked into the material from cold working, annealing significantly improves its resistance to environmental stress cracking (ESC), a failure mechanism where the combination of tensile stress and a corrosive environment can lead to sudden, brittle fracture.

For low-volume production, such as for heritage marques or prototypes, die creation is prohibitively expensive. Here, acid-etching, or chemical milling, offers an alternative. In this process, a photomask is used to protect certain areas of the metal sheet while a chemical etchant removes material from the exposed areas. While effective for creating intricate, low-relief designs, it is a slower process with looser tolerances. The isotropic nature of etching leads to undercutting, where the etchant removes material sideways as well as downwards, limiting the sharpness of vertical walls and the achievable depth-to-width aspect ratio.

Multi-hit stamping, by contrast, is a paragon of precision and repeatability. The depth of relief is a direct function of the die geometry and the applied tonnage. The physics of metal flow ensures that detail is crisp and consistent across millions of parts. The final relief depth is not just set by the die's cavity, but is a carefully engineered outcome of the material's flow stress, the die's draft angles, and the lubrication used during stamping. This level of control is essential for mass production where every badge must be identical.

These advanced manufacturing techniques demonstrate a sophisticated understanding of material science, allowing for the mass production of durable and highly detailed components that were once the exclusive domain of artisanal casting.
