TwinCAT, which stands for The Windows Control and Automation Technology, is a software suite from Beckhoff Automation. Its main job is to turn a standard PC into a real-time controller for industrial machines and processes. Instead of relying on specialized, proprietary hardware for every task, TwinCAT lets you use the power and flexibility of a regular computer to run a factory floor, a wind turbine, or a complex scientific instrument.

Think of it as the operating system for automation. Just as your laptop runs Windows or macOS to manage applications, an industrial PC can run TwinCAT to manage motors, sensors, and robotic arms with precision and reliability. This PC-based approach makes automation systems more powerful, easier to connect to other systems, and often more cost-effective than traditional methods.

The TwinCAT 3 system is split into two core components that work together: one for development and one for execution. Understanding the difference is key to understanding how TwinCAT works.

Imagine you're writing a play. You first need a word processor on your laptop to write the script, define the characters, and set the scenes. Once the script is perfect, you give it to the actors to perform live on stage. TwinCAT works in a similar way, with one environment for 'writing the script' and another for 'performing' it.

Let's look at each one more closely.

The eXtended Automation Engineering (XAE) environment is where an engineer designs and programs the automation solution. What's unique about TwinCAT 3 is that its XAE is fully integrated into Microsoft Visual Studio. This means developers can use a familiar, powerful, and modern software development tool to create control logic. Within XAE, they can program in different languages, configure hardware inputs and outputs, set up motion control for robotics, and design user interfaces.

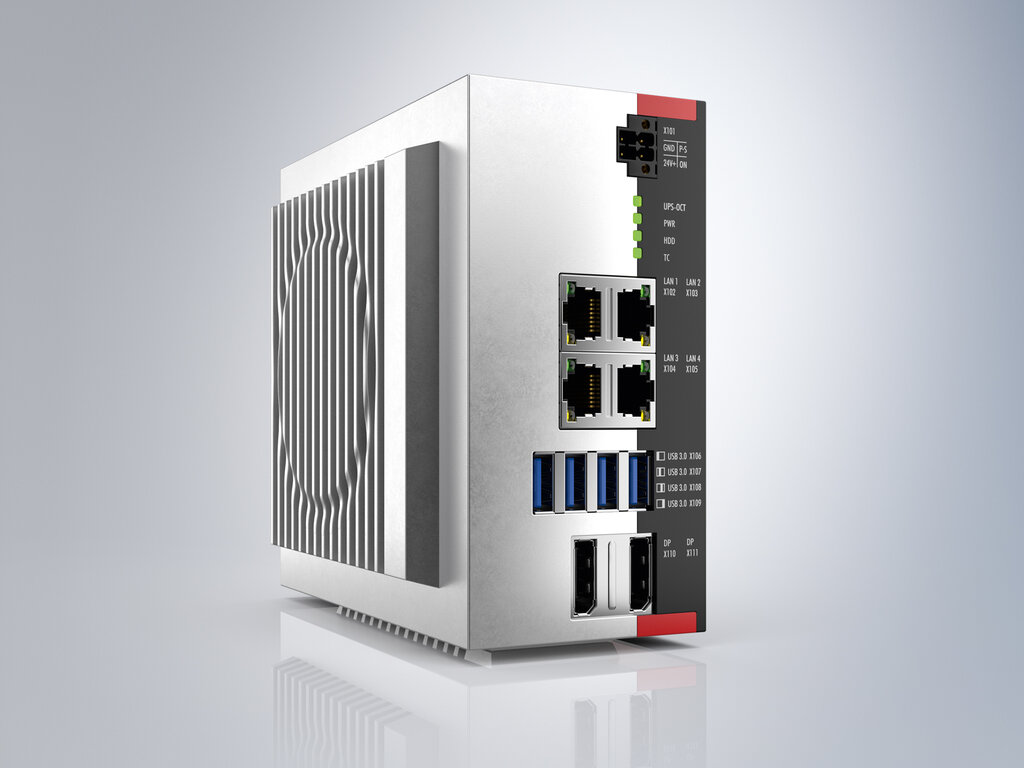

The eXtended Automation Runtime (XAR) is the engine that executes the program created in XAE. It's a real-time system, meaning it can execute tasks within very precise, guaranteed time intervals—often in microseconds. This is critical for industrial applications where timing is everything. The XAR runs on the target device, which could be anything from a massive industrial PC controlling a whole assembly line to a small embedded controller on a single machine.

Because it's a flexible, PC-based system, TwinCAT 3 is used across a huge range of industries. You can find it running everything from manufacturing and packaging machines to renewable energy systems.

Here are a few common applications:

• Machine Automation: This is the classic use case. CNC machines, injection molding machines, and packaging lines all require precise, high-speed control that TwinCAT provides.
• Robotics: TwinCAT can manage the complex movements of single or multiple robotic arms, synchronizing them with other parts of a production line.
• Building Automation: It can control lighting, HVAC, and security systems in large buildings, optimizing for energy efficiency.
• Wind Turbines: TwinCAT is used to control the pitch of the blades and the direction of the turbine to maximize energy generation in changing wind conditions.
• Measurement and Test Systems: In scientific research and product testing, TwinCAT provides the high-precision data acquisition and control needed for complex experiments.

Essentially, if a process requires precise timing, complex logic, and reliable operation, TwinCAT is a strong candidate for the job. By separating the development environment (XAE) from the real-time runtime (XAR), it provides a powerful and modern way to build sophisticated control systems.

Ready to check your understanding?

Now that you have a foundational understanding of what TwinCAT is and its core components, you're ready to move on to the next steps of setting up the software.
