To analyze aircraft performance, we need to understand the relationship between lift and drag. A drag polar is a graph that plots the coefficient of lift ($C_L$) versus the coefficient of drag ($C_D$) for an entire aircraft. This curve tells a detailed story about the aerodynamic efficiency at different angles of attack and airspeeds.

Total drag is the sum of parasite drag and induced drag. Parasite drag comes from the friction of air moving over the aircraft's skin and the shape of the aircraft itself. It increases with airspeed. Induced drag is the byproduct of lift and decreases as airspeed increases.

The lowest point on the drag polar curve represents the minimum drag condition. The airspeed at which this occurs, known as $V_{min\ drag}$, is where the aircraft is most efficient. Flying at this speed gives the maximum lift-to-drag ratio (L/D max), which corresponds to the best glide angle and maximum endurance for jet aircraft. Finding this point is a common task in performance calculations.

An aircraft climbs when thrust exceeds drag. The excess thrust determines how quickly it can gain altitude. Two key metrics are the rate of climb (R/C) and the climb gradient. The rate of climb is the vertical speed, usually measured in feet per minute. The climb gradient is the ratio of the vertical distance gained to the horizontal distance covered, often expressed as a percentage or an angle.

The climb gradient is more critical for obstacle clearance, especially after takeoff. A steeper gradient means you can clear a taller obstacle in a shorter horizontal distance.

Aircraft performance tables are based on the International Standard Atmosphere (ISA), a theoretical model of the atmosphere. In reality, the atmosphere is rarely standard. Temperature and pressure deviations significantly impact air density, which in turn affects engine power, lift, and drag.

Density altitude is the altitude the aircraft feels like it's flying at. On a hot day, air is less dense. The density altitude might be thousands of feet higher than the actual field elevation. This means the engine produces less power and the wings generate less lift, requiring longer takeoff rolls and reducing climb performance.

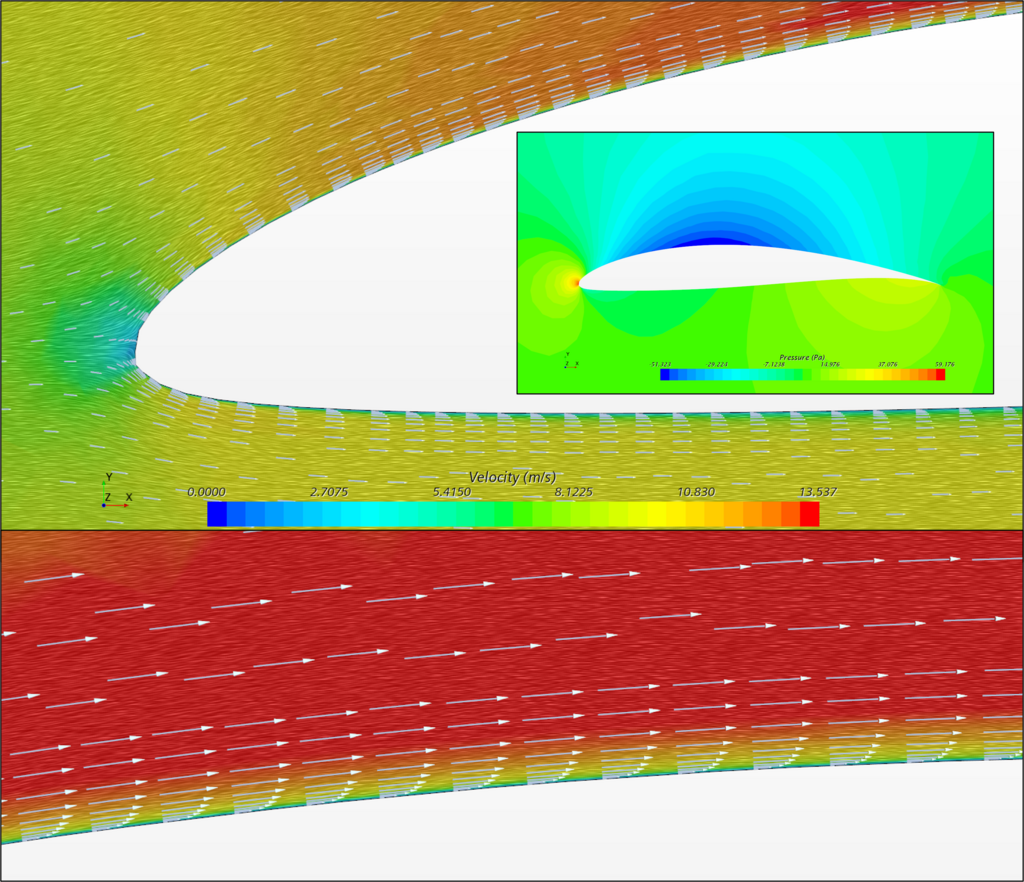

As an aircraft approaches the speed of sound, air stops behaving like an incompressible fluid. Pockets of supersonic flow can form over curved surfaces, like the top of the wing, even if the aircraft itself is still subsonic. The speed at which this first occurs is the Critical Mach Number ($M_{crit}$).

Exceeding the Critical Mach Number leads to the formation of shock waves, causing a sudden increase in drag known as drag divergence. It can also lead to control issues like Mach tuck, where the center of pressure shifts, causing the aircraft to pitch down. Modern airliners use swept wings and supercritical airfoils to delay these effects and cruise efficiently at high subsonic speeds.

Another crucial concept for understanding an aircraft's operational limits is the V-n diagram, or flight envelope. This graph plots airspeed (V) against the load factor (n), which is the ratio of lift to weight. It defines the safe structural limits of the aircraft.

The corner where the aerodynamic limit (stall line) meets the structural limit is the maneuvering speed ($V_A$). Below this speed, the aircraft will stall before it exceeds its structural load limit. Above this speed, it's possible to overstress the airframe. The vertical line on the far right is the never-exceed speed ($V_{NE}$). Understanding this envelope is critical for pilots and engineers to ensure the aircraft is operated safely.

Ready to test your knowledge? These questions cover the key performance calculations you'll encounter.

Mastering these quantitative concepts is the bridge from knowing how an aircraft flies to predicting precisely how it will perform in any given condition. This is the core of aeronautical performance engineering.
