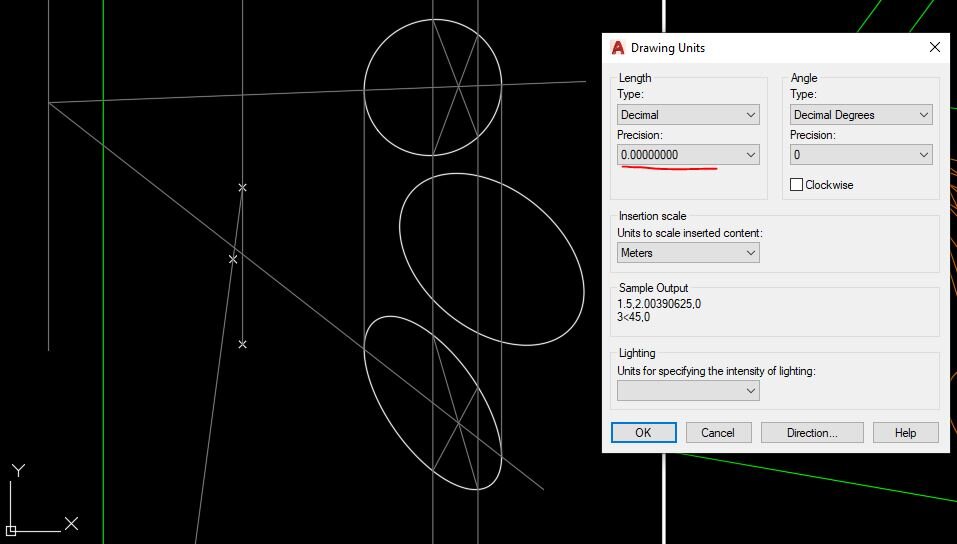

Moving beyond freehand sketching in AutoCAD means embracing precision. In technical drafting, every line and point must be exact. This accuracy isn't just a goal; it's a requirement. The foundation of this precision lies in telling AutoCAD exactly where to place geometry using coordinate systems.

Every object in an AutoCAD drawing exists on a 2D Cartesian plane defined by an X-axis (horizontal) and a Y-axis (vertical). The point where they intersect is the origin (0,0). To draw with precision, you specify points using this system. There are three primary methods for entering coordinates: absolute, relative, and polar. Each serves a different purpose, and mastering them is key to efficient drafting.

Absolute coordinates define a point's exact location based on the drawing's origin (0,0). When you type coordinates like 4,3, you're telling AutoCAD to place a point 4 units to the right and 3 units up from the origin. This method is tied to the World Coordinate System (WCS), the fixed and universal grid for every drawing. Absolute coordinates are best for placing foundational elements or objects whose position relative to the overall project space is already known.

Relative coordinates define a point based on the last point entered, not the origin. You specify them by prefixing the coordinate pair with the @ symbol. For example, if your last point was at (2,2), entering @4,3 places the next point 4 units to the right and 3 units up from (2,2), landing it at the absolute coordinate (6,5). This is often much faster for drawing a series of connected lines, as you don't need to calculate each point's position from the origin.

Polar coordinates also use the @ prefix but define a point by a distance and an angle from the last point. The format is @distance<angle. The angle is measured counter-clockwise from the 0-degree direction (east, or the positive X-axis). For instance, @5<37 tells AutoCAD to draw a line 5 units long at an angle of 37 degrees from the last point. This method is indispensable when you know a line's length and angle but not its X and Y endpoints, eliminating the need for manual trigonometry.

Typing into the command line is the classic way to work, but modern AutoCAD offers a more interactive method: Dynamic Input. When enabled (often by pressing F12), it displays input fields right next to your cursor. You can type distances, coordinates, and angles directly into these tooltips without looking away from your work. It seamlessly integrates relative and polar coordinate entry, making it a highly efficient workflow for heads-up design.

Beyond simple lines, technical drawings require more complex objects. A polyline is a single object composed of one or more connected line or arc segments. Unlike a series of individual lines, a polyline has properties like a constant width and can be edited as a single entity. The PLINE command allows you to create these, switching between straight line segments and arcs on the fly. This is perfect for drawing outlines, paths, or features that need to be treated as one continuous element.

For more organic shapes, you'll use splines. A spline is a smooth curve that passes through a set of defined fit points. The SPLINE command creates these Non-Uniform Rational B-Splines (NURBS) curves, which are essential for representing things like topographical contours, aerodynamic profiles, or decorative architectural elements. Their shape is controlled mathematically, ensuring a perfect, smooth flow that is difficult to achieve by hand.

These coordinate systems and object types are the building blocks of all precise 2D drafting. By choosing the right tool for the task, you can create complex, accurate drawings with speed and confidence.
