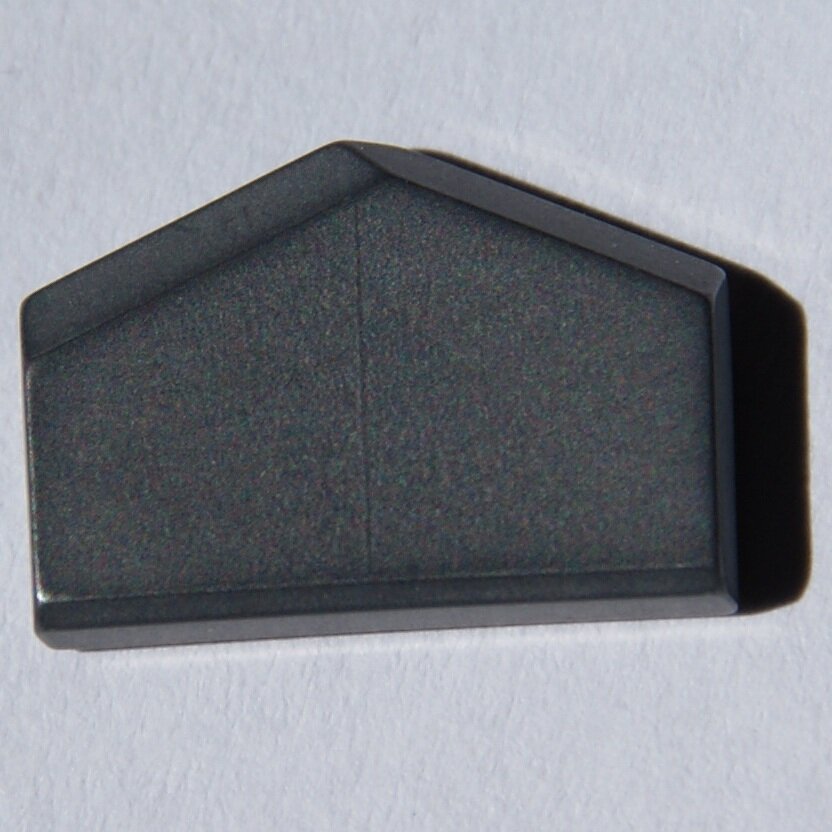

You already know that turning inserts come in different shapes—triangles, squares, rhomboids. But the real engineering happens on a much smaller scale. The performance of an insert in a high-precision environment isn't just about its outline; it's about the subtle, carefully designed geometries of its cutting edge.

Every cut involves a trio of forces: tangential (the main cutting force), feed (pushing the tool along the workpiece), and radial (pushing the tool away from the workpiece). The art of advanced machining is in controlling these forces, and that starts with understanding how the insert's macro-geometry, or its larger features, manipulates them.

Let's start with the features you can easily see. The nose radius and rake angle are the two most significant macro-geometric parameters. While you know a larger nose radius creates a stronger edge, its effect on cutting forces is more nuanced.

A larger radius spreads the cutting pressure over a wider area. This is good for edge strength and can produce a better surface finish. However, it also significantly increases the radial force, pushing the tool away from the workpiece. On a long, slender part, this increased pressure can cause chatter or deflection, ruining the part's accuracy. The key is balancing edge strength with force management.

Next is the rake angle, which dictates how the chip flows away from the cutting edge. A positive rake angle shears the material more efficiently, reducing cutting forces and heat. A negative rake angle provides a much stronger edge, suitable for heavy roughing or hard materials. But there's a catch: the angle marked on the box (the nominal rake angle) isn't the whole story.

The angle the workpiece material actually sees is the effective rake angle ($γ_e$). This is a combination of the insert's built-in rake and the angle of the toolholder itself. A neutral insert can be presented with a positive or negative rake just by changing the holder, giving you immense flexibility from a single piece of carbide.

Now, let's zoom in. Micro-geometry refers to the preparation of the cutting edge itself, often too small to see clearly without magnification. The sharpest possible edge isn't always the best. A razor-sharp corner is brittle and would chip instantly under the immense pressure of cutting metal.

To solve this, manufacturers use edge preparations. A honed edge involves slightly rounding the edge to a precise radius. This removes the fragile, sharp point and replaces it with a stronger, more predictable curve. It's a common choice for general-purpose machining, offering a great balance of strength and sharpness.

For more demanding jobs, like interrupted cuts or machining hard alloys, a T-land is used. This is a small, flat surface ground onto the rake face right at the cutting edge, usually with a negative angle. It creates an extremely strong, blunt profile that can withstand high impact forces. The trade-off is that it increases cutting pressure and heat generation, but for tough materials, it's the only way to ensure the tool survives.

The final piece of the puzzle is the chip breaker. Those intricate grooves and bumps on the top surface of an insert aren't for decoration. Their sole purpose is to curl and break the chip coming off the workpiece into manageable pieces.

An unbroken, stringy chip is a machinist's nightmare. It can wrap around the workpiece or tool, ruining the surface finish and creating a dangerous situation. The chip breaker's geometry forces the chip to curl tightly against itself or the workpiece, building up stress until it snaps. The design of the chip breaker is tailored to a specific range of feed rates and depths of cut. A chip breaker for light finishing cuts will have delicate features close to the edge, while one for heavy roughing will have large, aggressive features set further back.

Achieving geometric stability at high feed rates depends on selecting an insert where all these elements work in harmony. You need a nose radius that can handle the load without causing chatter, an edge preparation tough enough to prevent chipping, and a chip breaker that effectively manages the high volume of material being removed. When the geometry is right, the machine can run faster, tool life increases, and the entire process becomes more reliable and predictable.

Time to test your knowledge on these advanced concepts.

By moving beyond basic shapes and understanding the physics of the cutting edge, you can begin to truly engineer your turning processes for maximum performance and stability.
