Your experience with FMEA gives you a solid framework for anticipating how physical components fail. A bearing grinds, a belt snaps, a motor overheats. These are tangible, often predictable, failure modes. But in PLC-based control, especially within a soft PLC environment like Beckhoff TwinCAT, the most insidious failures originate not in steel and copper, but in logic and timing.

Unlike mechanical wear, software failures can be non-events for thousands of cycles, then suddenly cause a system-wide fault. We'll move past the physical and focus on the unique failure modes that arise from the interaction between IEC 61131-3 logic, the TwinCAT real-time kernel, and the underlying operating system. This is where a deep understanding of the control system's inner workings becomes crucial for building genuinely robust automation.

At the heart of a TwinCAT system is a constant battle for resources. The real-time kernel, where your PLC tasks execute, must perform its duties with absolute punctuality, while the general-purpose Windows OS handles everything else. This delicate balance is where many failures begin.

A cycle time overrun occurs when a PLC task takes longer to execute than the cycle time you've allocated for it. Perhaps a complex calculation, a loop processing a large array, or a communication holdup causes a delay. When this happens, TwinCAT's real-time scheduler is forced to make a hard choice. It might delay the start of the next cycle, creating timing jitter that ripples through your control loops. In a high-speed application, this jitter can be fatal to process stability.

Imagine a PID loop controlling the voltage in an HVDC microgrid. It expects to receive an input, perform its calculation, and produce an output every 50 microseconds. If a cycle time overrun pushes that to 70 microseconds, the loop's timing is thrown off. The controller is now acting on slightly stale data, and its corrections are slightly late. This can introduce oscillations that, in a worst-case scenario, lead to instability and grid collapse.

To guard against this, watchdog timers are essential. A watchdog is a hardware or software timer that is continuously reset by the PLC's normal operation. If a task hangs or gets stuck in an infinite loop due to a logic error, it fails to reset the watchdog. The watchdog timer then expires and triggers a predefined safety action, such as putting the system into a safe state or forcing a reboot. Properly configuring task watchdogs in TwinCAT is your first line of defense against logic that runs away.

This highlights the core difference between deterministic and non-deterministic failures. A mechanical part wearing out is largely deterministic; you can predict its failure with reasonable accuracy. A software fault caused by a rare confluence of events is non-deterministic. It might only occur when a specific sensor value arrives at the exact moment a network packet is delayed, making it incredibly difficult to test for and diagnose.

Within your IEC 61131-3 code, seemingly innocent operations can become failure points. The classic example is a division-by-zero error. If your logic divides a value by a sensor reading that unexpectedly becomes zero, the PLC processor will throw an exception. Unless you've written specific error-handling routines, this can halt the entire task or even cause a major fault in the controller.

Another subtle but critical failure mode is the I/O image update failure. At the beginning of each PLC cycle, TwinCAT reads the physical inputs into a memory area called the Process Image of Inputs (PII). At the end of the cycle, it writes the Process Image of Outputs (PIQ) to the physical outputs. This ensures the PLC logic operates on a consistent snapshot of data throughout its scan.

However, if the fieldbus communication (like EtherCAT) is interrupted, this update might not happen correctly. Your logic could be running based on the last valid data, completely blind to the current state of the machine. The PID block in your HVDC controller might think the voltage is stable because its input value hasn't updated, while in reality, the physical voltage is plummeting. This is why monitoring the status and health of your I/O bus is as important as the control logic itself.

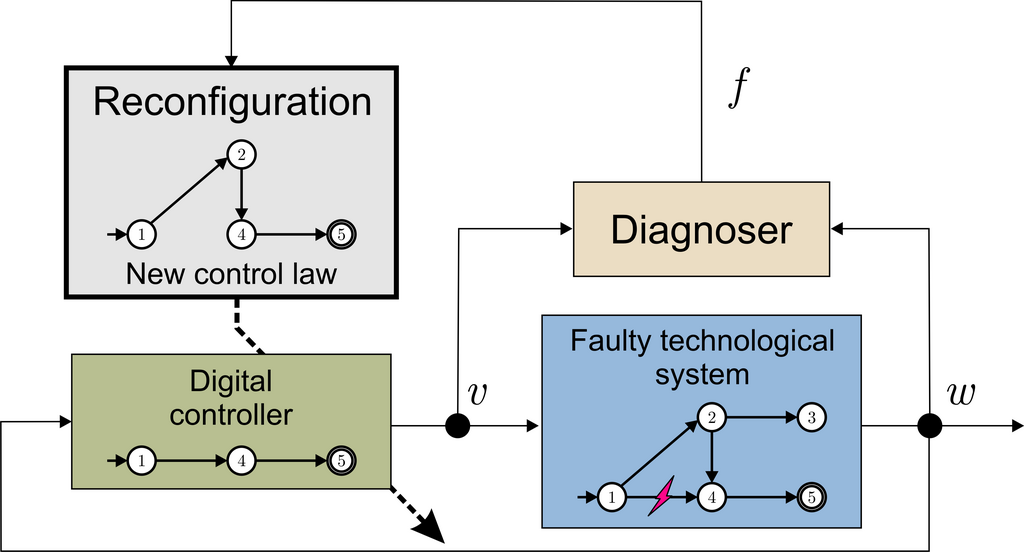

By applying the FMEA mindset to these software- and timing-centric issues, you can build systems that are not just functionally correct, but truly resilient. It involves anticipating how code can fail, how timing can be violated, and how data can become corrupted, and then designing in the necessary checks, balances, and fallback states.
