Matrix and Reinforcement Synergy

The Unseen Partnership

A composite material is more than just a simple mixture. Its true performance comes from the sophisticated partnership between its two main components: the matrix and the reinforcement. Think of it like a skeleton and muscles. One provides the structure, the other provides the strength, and they are useless without each other.

The matrix is the continuous phase, the binder that holds everything together. Its primary job is to give the composite part its shape and to protect the reinforcement from the environment, shielding it from moisture, chemicals, and physical damage. Critically, the matrix also serves as the load transfer medium. When a force is applied to the composite, the matrix takes that load and distributes it evenly across the reinforcement fibers.

The reinforcement is the discontinuous phase, typically composed of stiff, strong fibers like carbon or glass. This is the powerhouse of the composite. While the matrix is relatively weak on its own, the reinforcement provides the bulk of the material's strength and stiffness, allowing it to resist bending and stretching.

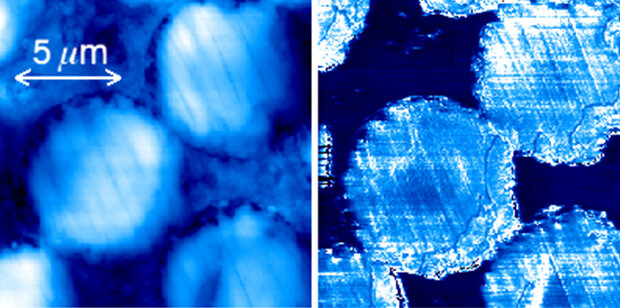

Lesson image

The Critical Handshake

Simply mixing strong fibers into a resin isn't enough. The effectiveness of the load transfer from matrix to reinforcement depends entirely on the quality of the bond between them. This crucial meeting point is called the interface. It's not just a simple boundary; it's a complex, three-dimensional region called the , where the material properties are distinct from both the bulk matrix and the fiber.

A strong bond at the interface is essential for efficient load transfer. This bond is achieved through several mechanisms. Chemical bonding involves direct atomic links, such as covalent bonds, between the fiber surface and the matrix. Sometimes, surface treatments are applied to fibers to promote these connections. Electrostatic forces can also play a role, attracting the matrix to the fiber surface. Finally, there's , where the roughness of the fiber surface creates a physical grip with the surrounding matrix.

The SEM analysis confirmed that fiber–matrix adhesion plays a critical role in improving toughness through mechanisms such as crack bridging and fiber pull-out...

Measuring the Mix

The ratio of reinforcement to matrix is a fundamental parameter in composite design. This is quantified in two ways: by volume or by weight. The volume fraction (VfV_f) is the volume of the fibers divided by the total volume of the composite. The weight fraction (WfW_f) is the weight of the fibers divided by the total weight. Both are crucial, but volume fraction is often more directly related to the final mechanical properties, as it describes how densely the load-bearing fibers are packed.

Since it's often easier to measure the weight of components than their volume, we frequently need to convert between these two fractions. This requires knowing the densities of the fiber (hof ho_f) and the matrix (hom ho_m).

Vf=11+ρfρm(1Wf1)V_f = \frac{1}{1 + \frac{\rho_f}{\rho_m} (\frac{1}{W_f} - 1)}
Wf=11+ρmρf(1Vf1)W_f = \frac{1}{1 + \frac{\rho_m}{\rho_f} (\frac{1}{V_f} - 1)}

Understanding this synergy between matrix, reinforcement, and the interface is the first step in designing advanced composite materials that are both strong and reliable.
