As a network grows, a single OSPF area becomes inefficient. Imagine a city where every single street change is broadcast to every single driver, all the time. It would be overwhelming. To solve this, OSPF uses a multi-area design, dividing a large network into smaller, more manageable areas.

At the heart of this design is the backbone area, Area 0. All other areas must connect to it, either directly or through another area. This hierarchical structure keeps routing information contained. A router in one area knows the detailed layout of its own territory but only receives summarized information about other areas. This reduces the size of routing tables and minimizes the processing required when the network topology changes.

This leads directly to route summarization. An Area Border Router (ABR), which connects an area to the backbone, can consolidate multiple specific routes into a single summary route. For instance, instead of advertising routes for 10.1.1.0/24, 10.1.2.0/24, and 10.1.3.0/24 individually, an ABR can advertise one summary route: 10.1.0.0/22.

This single advertisement covers all the individual networks, making the routing information sent to other areas much more concise. It's the difference between giving someone a full phone book and just giving them the area code for a city.

Communication within OSPF is handled by Link-State Advertisements (LSAs). These are packets of information that routers exchange to describe the network's topology. Each router builds a complete map of its area based on these LSAs. There are several types of LSAs, each with a specific purpose.

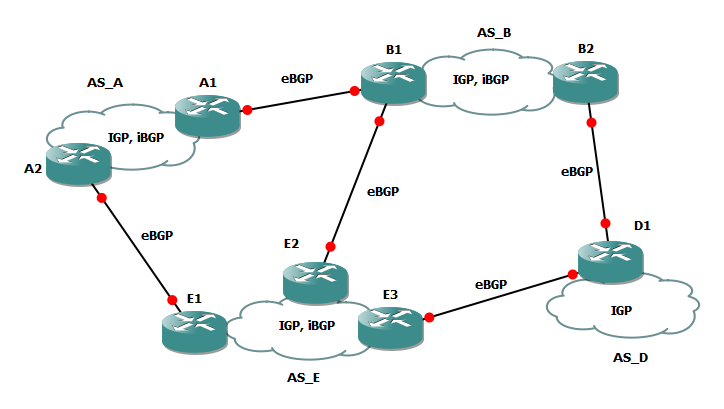

While OSPF manages routing within a single organization's network (an Autonomous System, or AS), Border Gateway Protocol (BGP) handles routing between them. BGP is the protocol that makes the internet work, connecting massive networks managed by ISPs, cloud providers, and large enterprises.

Unlike OSPF, which prioritizes the shortest path, BGP is a path-vector protocol focused on policy. It doesn't just find a path; it finds the best path according to the rules set by network administrators. This is crucial because routing decisions between ASes often involve business agreements and cost considerations, not just technical efficiency.

When a BGP router receives multiple paths to the same destination, it runs a complex decision process to select the single best one. This process follows a strict order of criteria.

This path selection process is deterministic. If a router learns about several ways to reach a network, it steps through a list of attributes until one path is chosen as superior. Some of the most important attributes in this process are:

Mastering these attributes is key to implementing BGP route policies. Using tools like route maps, administrators can manipulate these attributes to control how traffic enters and leaves their network. For example, you could set a higher local preference for a route through a faster, more expensive ISP link to make it the primary path, while keeping a cheaper link as a backup. This level of granular control is why BGP is essential for the global internet.

Understanding how to scale OSPF and implement BGP policies are advanced skills that form the backbone of modern network engineering.
